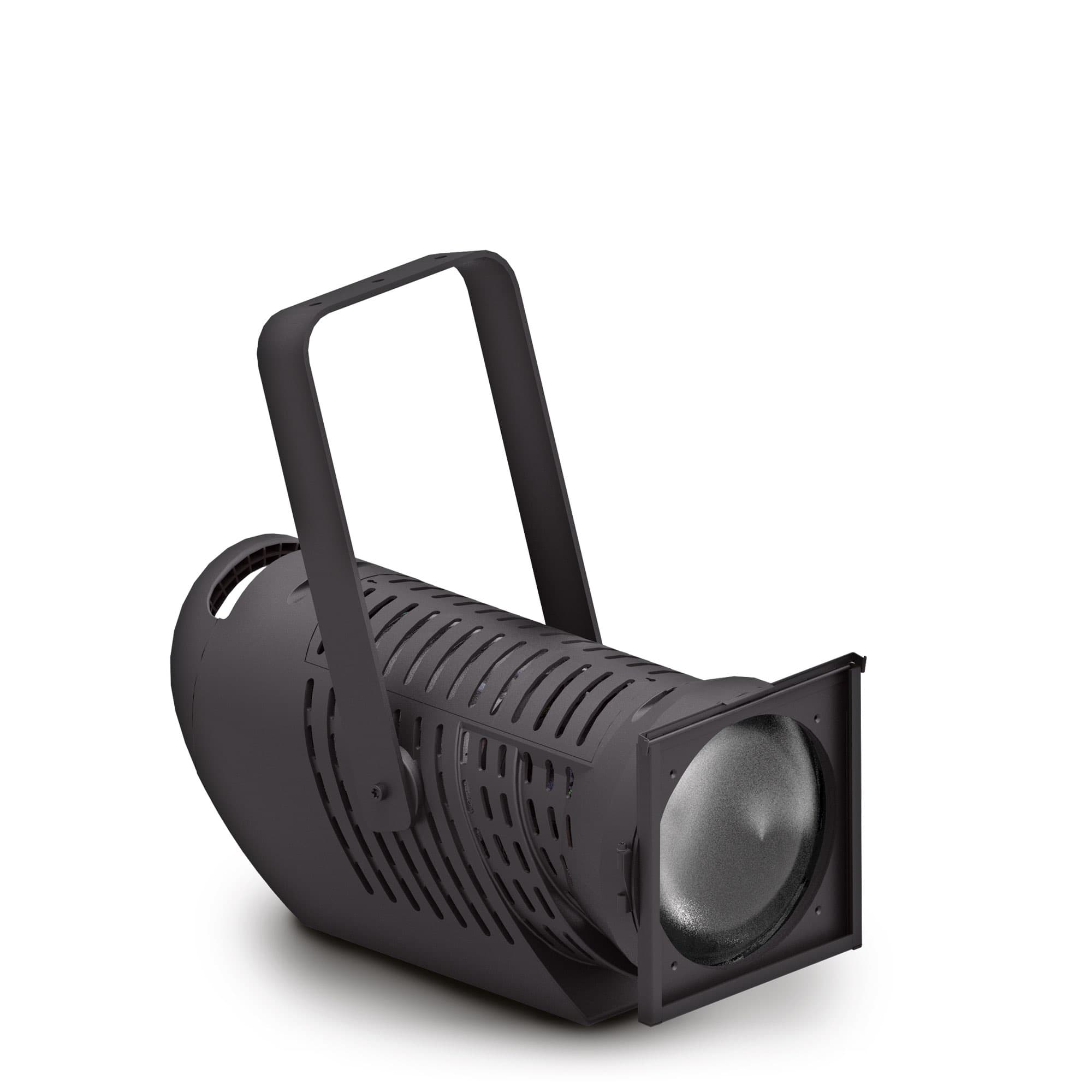

Orkis Fresnel
Six-colour LED Fresnel from ADB by Claypaky — CRI 97 with motorised zoom.
Applications
Live eventsStage designTheatreTV / Broadcast
Features
- Six-colour LED engine (Red, Green, Blue, Amber, Cyan, Lime) for a wide gamut
- Stable CRI of 97 at any colour temperature across 2,500–8,000 K
- Motorised zoom with continuous, smooth Fresnel beam adjustment
- Interchangeable optics: standard Fresnel lens or optional PC lens
- Tungsten-mode replication and ±green/magenta tint correction
- 16-bit ultra-smooth dimming with adjustable flicker-free PWM
- Optional W-DMX wireless control version
Specifications
Light source
6-colour LED (RGB + Amber, Cyan, Lime)
CRI
97 at any colour temperature
Colour temperature
2,500–8,000 K
Fresnel lens
Beam 15°–54°; field 22°–87°
PC lens (optional)
Beam 14.5°–56°; field 26°–80°
Fresnel narrow @ 5 m
2,375 lux
Fresnel wide @ 5 m
305 lux
Front lens
Ø 160 mm
Personalities
4 modes (15 / 15 / 28 / 28 channels)
Control
DMX · Art-Net · sACN · RDM; optional W-DMX
Connections
5-pin XLR IN/THRU + RJ45 IN
Power
PowerCon True1 — 300 VA max
Noise
24 dBA @ 1 m (standard mode)
Ingress protection
IP20
Weight
11 kg
