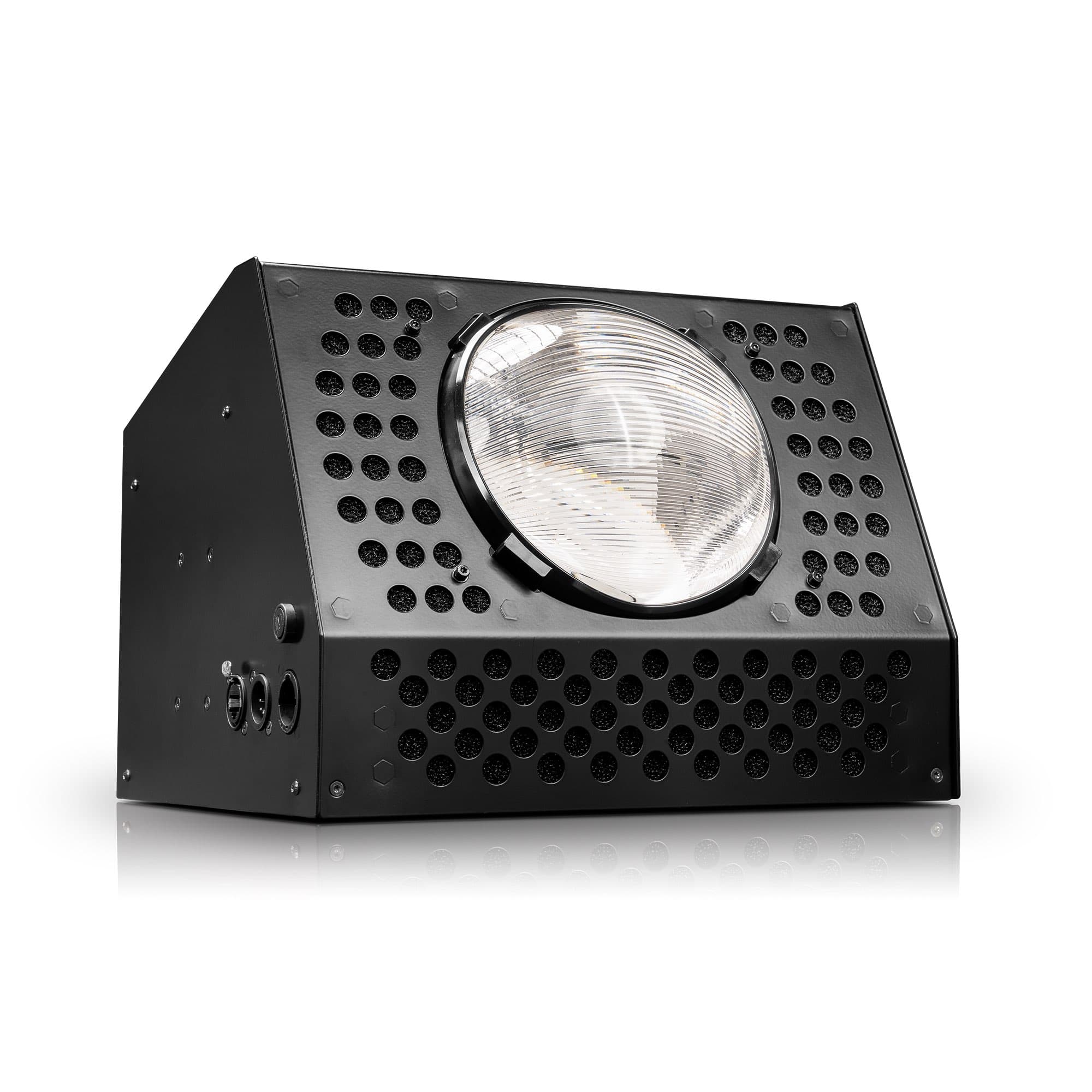

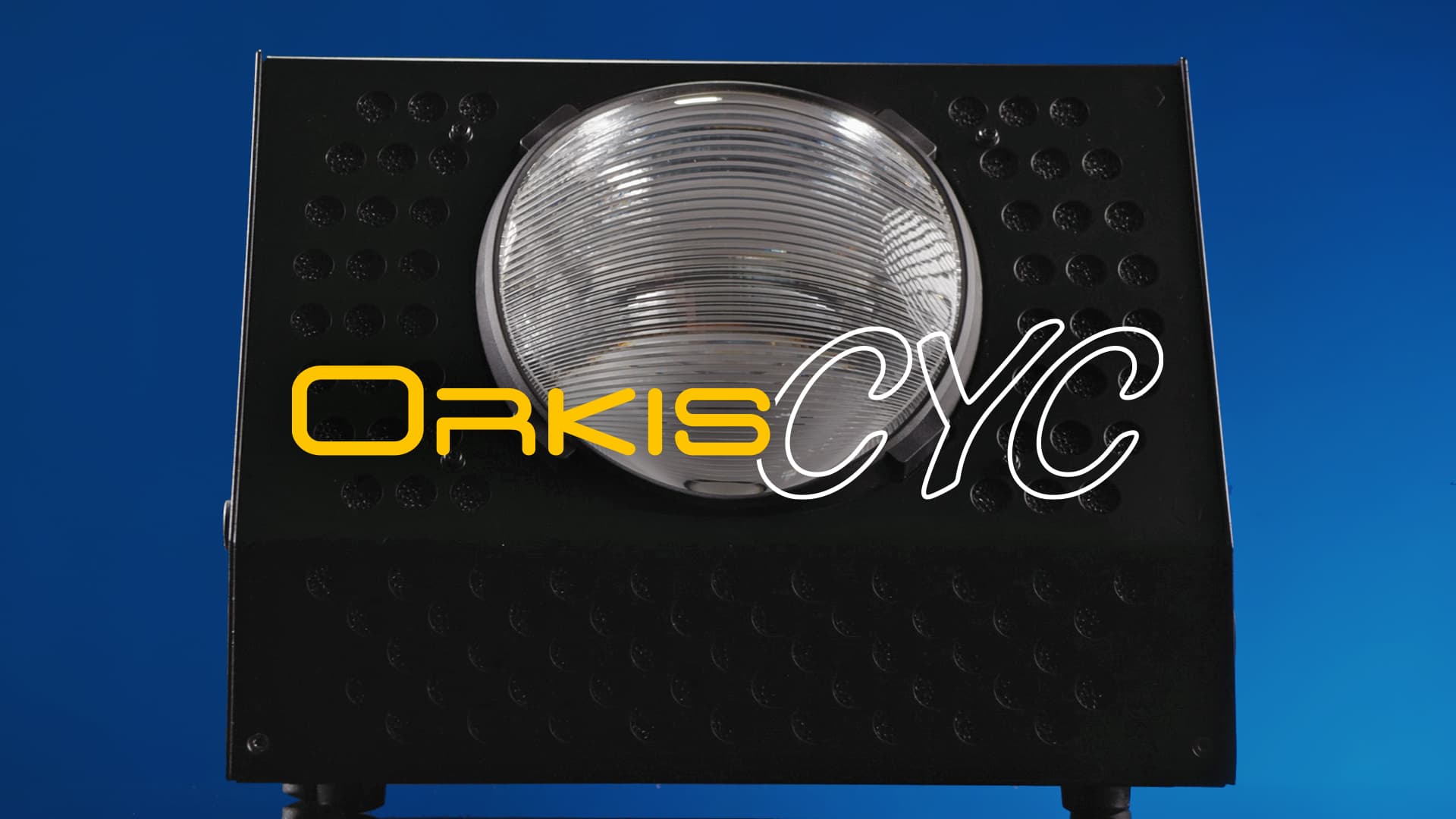

Orkis CYC
Game-changing cyclorama light from ADB by Claypaky — 5,700 lm, CRI up to 98, near-silent.
Applications
Live eventsStage designTheatreTV / Broadcast
Features
- Six-colour RGBCAL HCR COB LED engine for a wide gamut and CRI up to 98
- Tunable white across 2,500–8,000 K with precise colour mixing
- Asymmetric front lens for even, seamless wall and cyclorama washes
- FLOW active liquid cooling with near-silent operation (fanless mode 21.2 dBA)
- Compact, lightweight body (under 6 kg) for floor or truss mounting
- In-field calibration keeps colour consistent across multiple fixtures
- High-resolution 24-bit electronic dimmer with four selectable curves
Specifications
Light source
6-colour RGBCAL HCR COB LED
Light output
5,700 lm (integrating sphere)
CRI
Up to 98
Colour temperature
2,500–8,000 K
Front lens
Asymmetric
Personalities
4 modes (14 / 14 / 27 / 27 channels)
Dimmer
24-bit, 4 curves
Cooling
FLOW active liquid cooling
Noise
24.2 / 22.7 / 21.2 dBA (fanless)
Control
DMX · Art-Net · sACN · RDM
Connections
5-pin XLR IN/OUT + RJ45 IN/THRU
Power
PowerCon True1 — 250 W max
Ingress protection
IP20
Weight
5.9 kg
