Mini Xtylos HPE

Compact RGB-laser beam — a flat-field, hotspot-free beam with Turbo Colours.

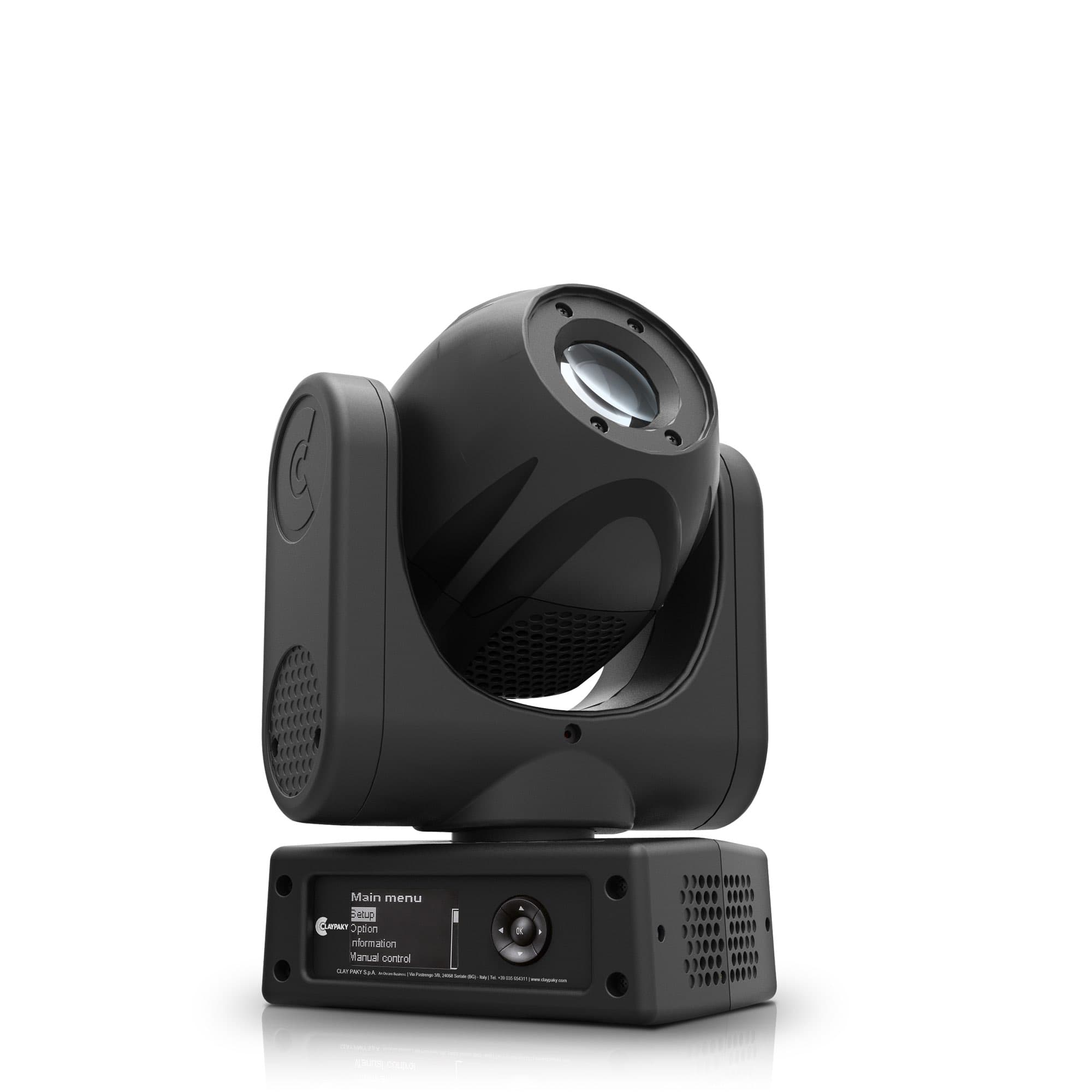

Claypaky Mini Xtylos HPE RGB-laser beam moving head — three-quarter studio view

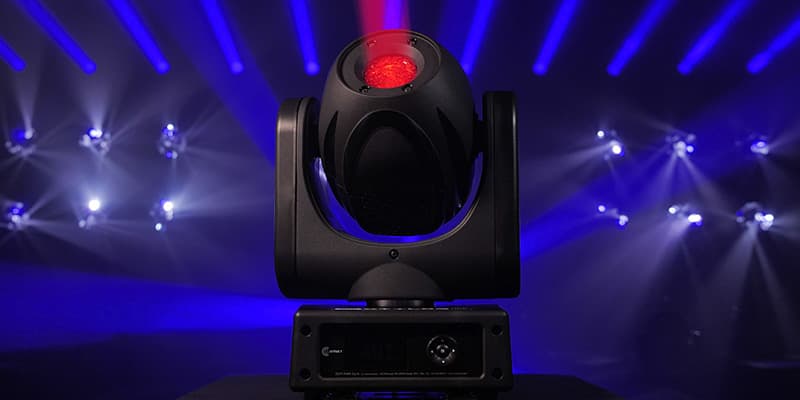

Claypaky Mini Xtylos HPE — compact form factor highlight
Claypaky Mini Xtylos HPE — endless pan rotation highlight

Applications

ConcertFestivalsLive eventsStage designTouringTV / Broadcast

Features

  • Proprietary RGB laser engine rated for roughly 20,000 hours
  • Exclusive Turbo Colours system for deep, saturated colour with no visible hotspots
  • Ultra-concentrated 1°–4° beam (2.5 Mcd at 1° aperture)
  • Linear virtual CTO from 3,000 K to 9,000 K with additive RGB mixing
  • Effects wheel with two interchangeable rotating prisms plus a frost filter
  • Endless pan rotation with motorised zoom and focus
  • Very low power draw (80 VA) in a compact 9 kg body

Specifications

Light source

Tailor-made RGB laser engine (~20,000 hrs)

Light output

470 lm (2.5 Mcd at 1°)

Colour temperature

Linear virtual CTO 3,000–9,000 K

Zoom

1°–4°

Front lens

Ø 60 mm

Colour

RGB additive with Turbo Colours

Effects

2 interchangeable rotating prisms + frost

Movement

Endless pan / tilt 265° (16-bit)

Dimmer

24-bit digital; high-speed electronic strobe

Control

DMX · Art-Net · sACN · RDM

Connections

5-pin XLR IN/OUT + RJ45

Power

PowerCon True1 — 80 VA max

Ingress protection

IP20

Weight

9 kg
