Mini-B WW
Warm-white Mini-B — 3,420 lm from seven 40 W RGB+WW LEDs at a native 3,200 K.
Applications
Live eventsStage designTheatreTouringTV / Broadcast
Features

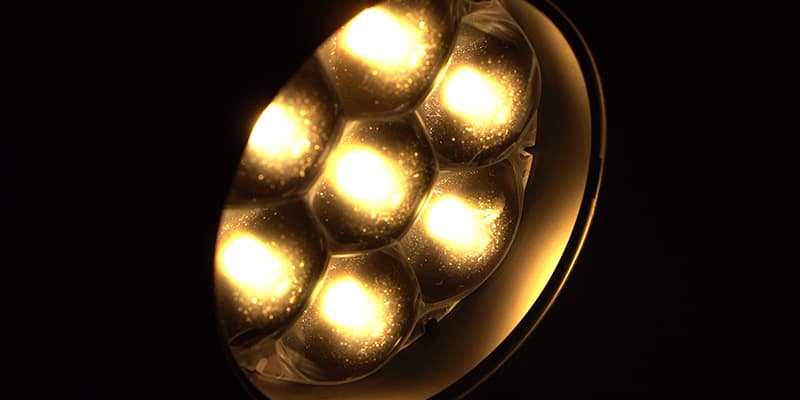

- Seven Osram 40 W RGB+WW (warm white) LEDs delivering 3,420 lm
- Native 3,200 K warm white for natural skin-tone rendering
- Linear CTB 6,500–2,500 K to cool the output as required
- 4°–55° motorised zoom, working as both beam and wash
- Selected-LED control with independent central-LED and outer-ring effects

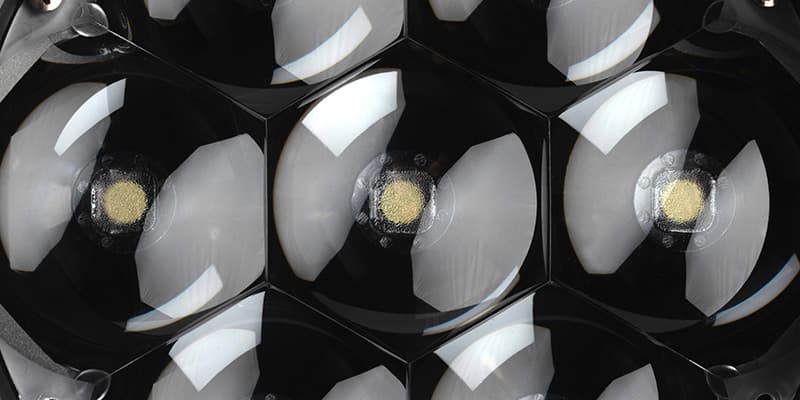

- Beam shaping and 24-bit five-curve dimming for smooth, balanced fades
- Compact, lightweight body with very low power consumption
Specifications
Light source
7 × Osram 40 W RGB+WW LEDs
Light output
3,420 lm (integrating sphere)
Colour temperature
3,200 K
CTB
Linear 6,500–2,500 K
Colour mixing
RGB+WW, 16-bit
Zoom
4°–55°
Front lens
Ø 140 mm
Movement
Pan 540° / tilt 260° (16-bit)
Dimmer
24-bit electronic, 5 curves
Control
DMX · Art-Net · sACN · RDM (web server)
Connections
5-pin XLR IN/OUT + RJ45 IN
Power
PowerCon True1 — 375 W max
Ingress protection
IP20
Weight
6.5 kg
