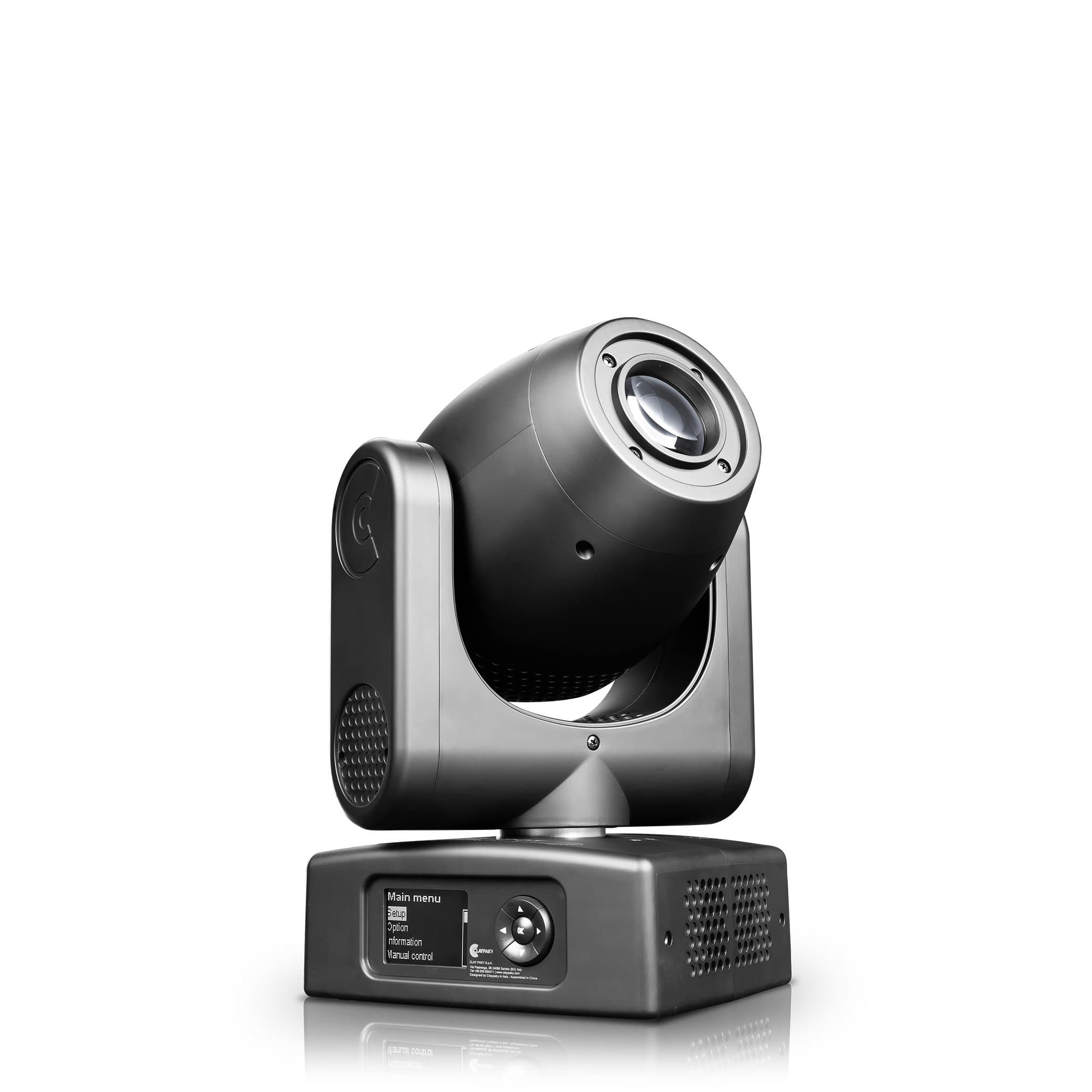

Mini-B Spot
The smallest Claypaky spot — 3,500 lm from a 70 W engine in an 8.5 kg body.
Applications
Live eventsStage designTheatreTouringTV / Broadcast
Features
- 70 W white LED engine, 7,000 K, delivering 3,500 lm for only 150 W of consumption
- Motorised 13°–43° zoom with autofocus, from tight beam to wash
- Seven-position colour wheel plus a 3,200 K CTO for natural warm white
- Seven-gobo wheel of fully interchangeable HD gobos with a four-facet rotating prism
- 5° linear soft-edge frost for diffuse blurring up to a wash-like effect
- Very high-speed pan and tilt for fast moving-light effects
- 24-bit dimmer with four curves; Constant / Auto / Silent / Theatre modes
Specifications
Light source
70 W white LED
Colour temperature
7,000 K
Light output
3,500 lm
Power consumption
150 W
Zoom
13°–43° (motorised, autofocus)
Front lens
Ø 60 mm
Colour wheel
7 colours + open, plus 3,200 K CTO
Gobos
7 interchangeable HD gobos
Prism
Four-facet rotating
Frost
5° linear soft-edge
Dimmer
24-bit digital, 4 curves
Control
DMX · Art-Net · sACN · RDM (web server)
Connections
5-pin XLR + RJ45; CloudIO ready
Ingress protection
IP20
Weight
8.5 kg
