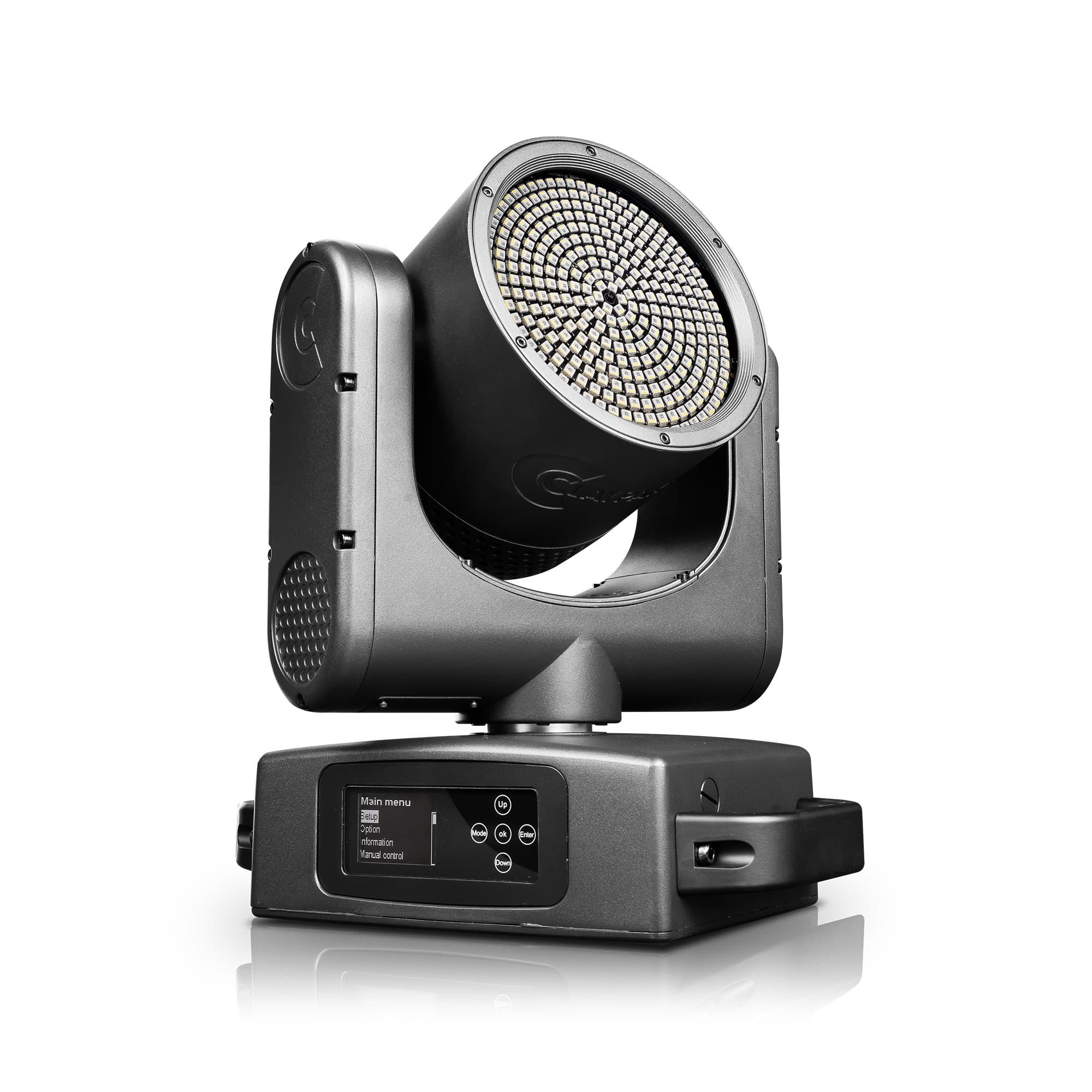

Mini-B Sparky Aqua
IP66 effect wash — 14,000 lm from 330 RGBW SMD LEDs in 10 controllable rings.
Applications
ConcertFestivalsLive eventsOutdoor / InstallStage designTouring
Features

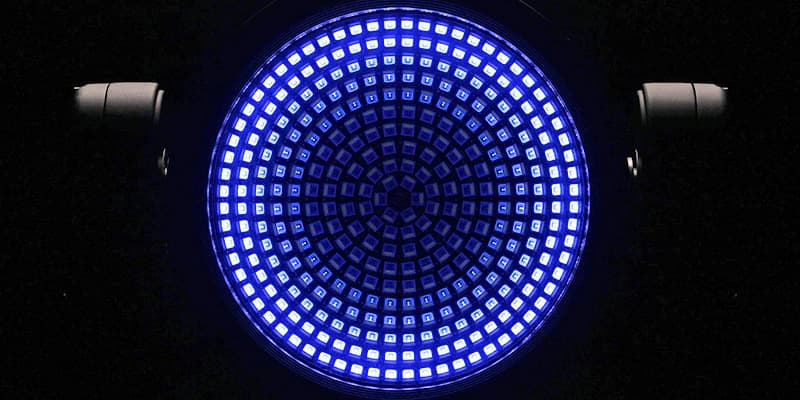

- 330 RGBW SMD LEDs in ten individually controllable concentric circles
- Up to 14,000 lumens with a wide 120° aperture

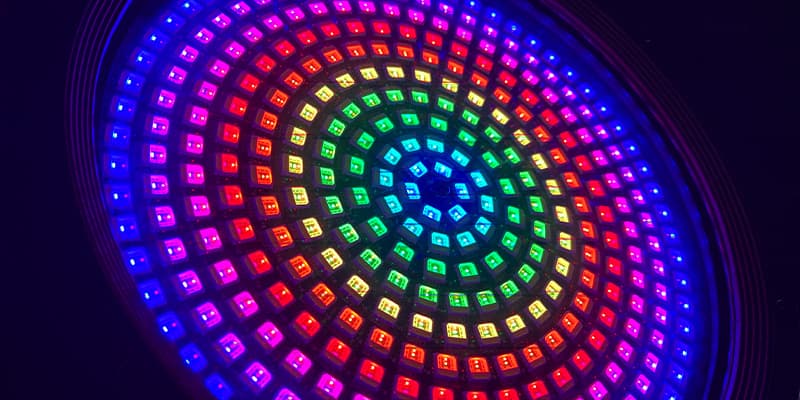

- Pixel mapping with Advanced Layer Management for video and macro blending
- IP66 weatherproof magnesium housing for indoor and outdoor use
- High-speed electronic strobe and 16-bit dimmer with five curves
- Swift pan and tilt for dynamic effect sequences
- Broad protocol support including WebServer control
Specifications
Light source
330 × 1 W RGBW SMD LEDs
Light output
14,000 lm (integrating sphere)
Aperture
120°
Front lens
Ø 188 mm
Movement
Pan 540° / tilt 220° (16-bit)
Dimmer / shutter
16-bit, 5 curves; electronic strobe
Control
DMX · Art-Net · sACN · RDM · WebServer
Connections
5-pin XLR IN/OUT + RJ45 IN/OUT
Power
PowerCon True1 — 340 W max
Noise
41 dB (silent) / 49.1 dB (theatre)
Ingress protection
IP66 (Shield Family)
Weight
12.2 kg
