Mini-B ParLED Aqua

Weatherproof IP66 mini par — 3,400 lm from seven 40 W RGBW LEDs with a 4°–53° zoom.

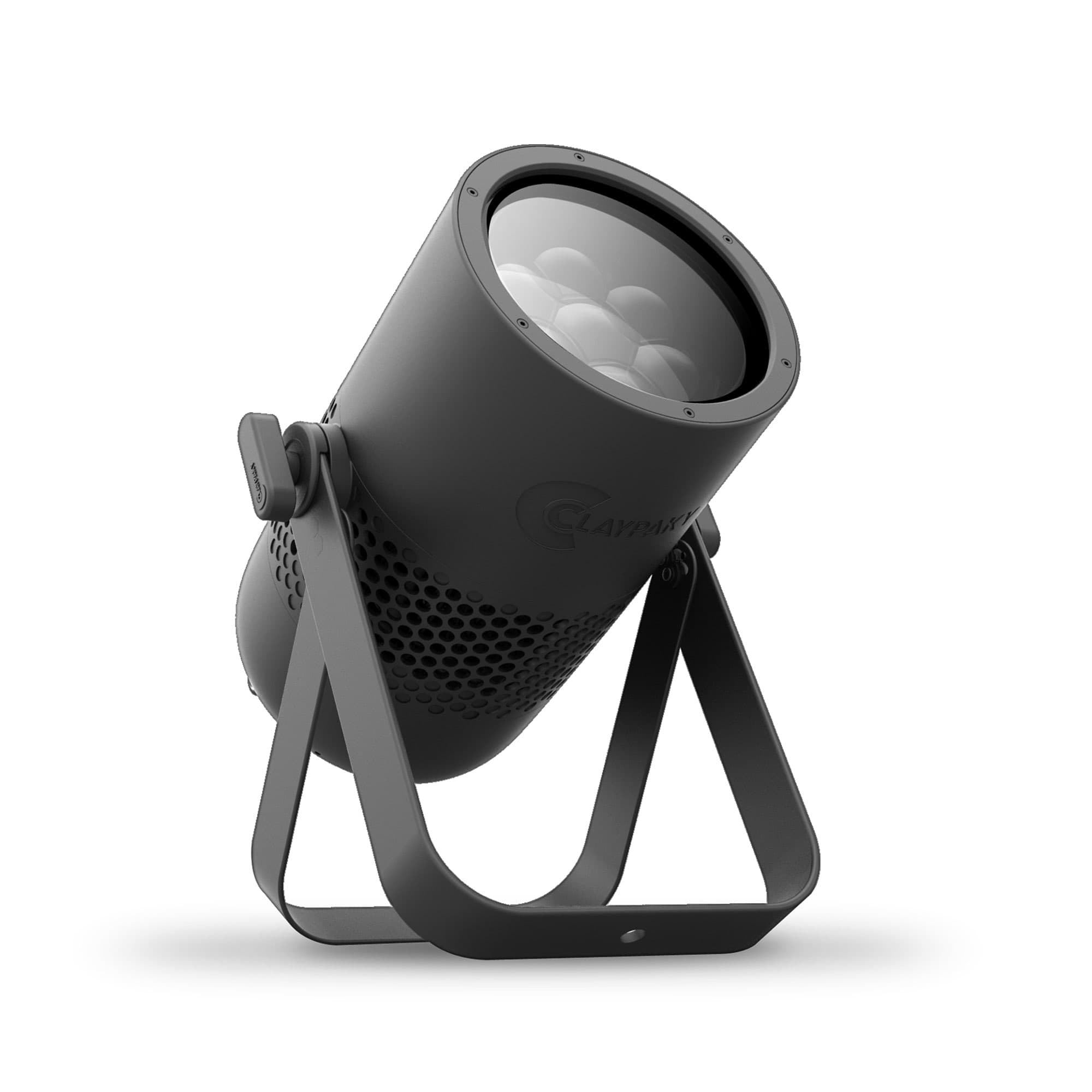

Claypaky Mini-B ParLED Aqua IP66 weatherproof LED par — three-quarter studio view
Claypaky Mini-B ParLED Aqua — zoom range from narrow beam to wide wash
Claypaky Shield Family IP66 badge — the Mini-B ParLED Aqua’s weatherproof rating

Applications

ArchitecturalFestivalsLive eventsOutdoor / InstallTheme parksTouring

Features

  • Compact, lightweight par format — around 7 kg and 34 cm tall
  • Seven 40 W Osram RGBW LEDs for rich colour and bright whites
  • Motorised 4°–53° zoom
  • Central LED controllable independently from the outer ring
  • Colour temperature adjustable from 2,500 K to 8,000 K
  • IP66 weatherproof rating plus IK08 impact resistance
  • Multi-protocol control over DMX, Art-Net, RDM and sACN

Specifications

Light source

7 × Osram 40 W RGBW LEDs

Light output

3,400 lm

Colour temperature

2,500–8,000 K

Zoom

4°–53°

Dimmer

24-bit electronic

Control

DMX · Art-Net · sACN · RDM

Power

PowerCon — 300 VA max

Noise

36.4 dBA (silent mode)

Ingress protection

IP66 (Shield Family); IK08

Weight

7.4 kg
