Mini-B Aqua PX

Pixel-mapping IP66 Mini-B wash — seven individually controllable 40 W RGBW LEDs.

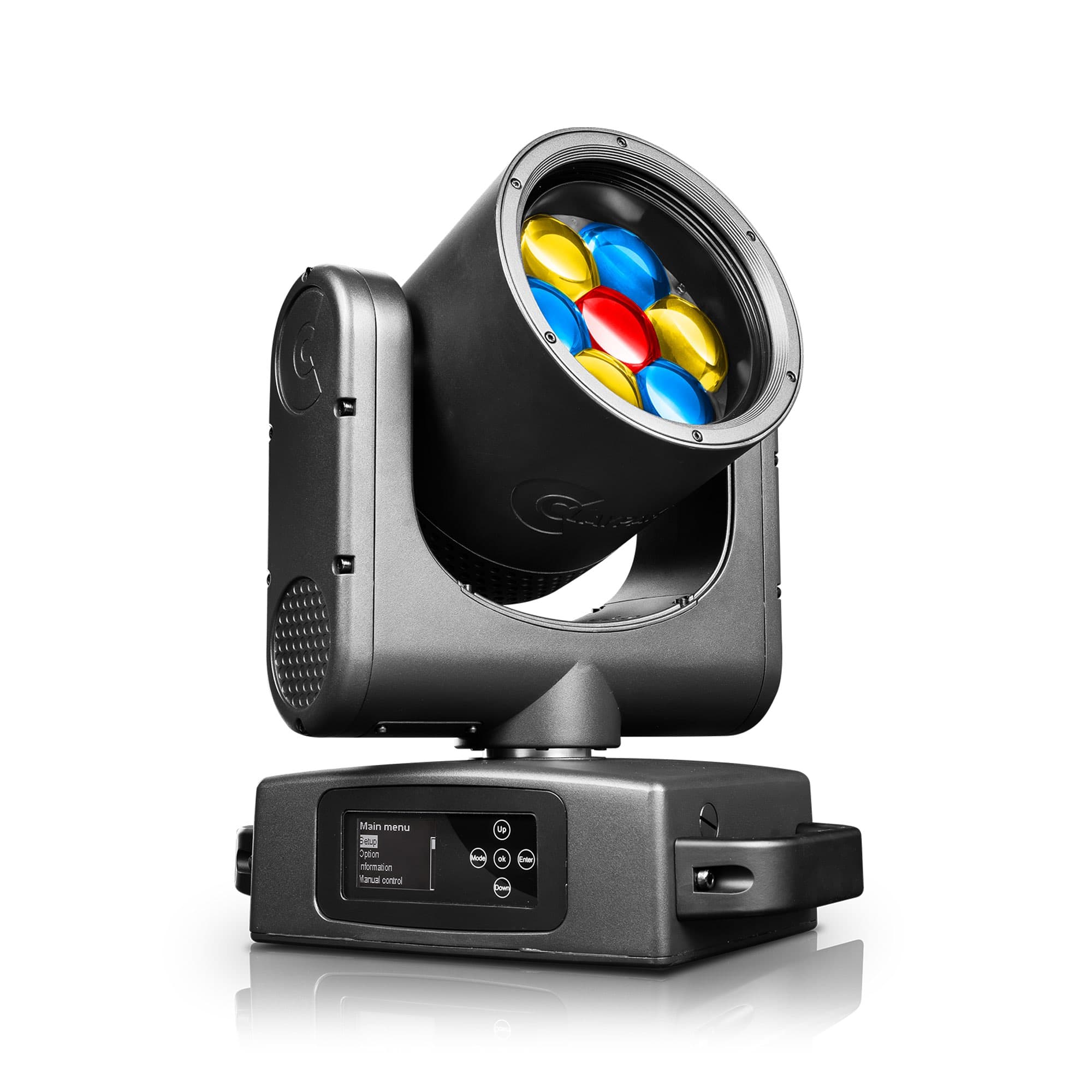

Claypaky Mini-B Aqua PX IP66 LED wash moving head — three-quarter studio view

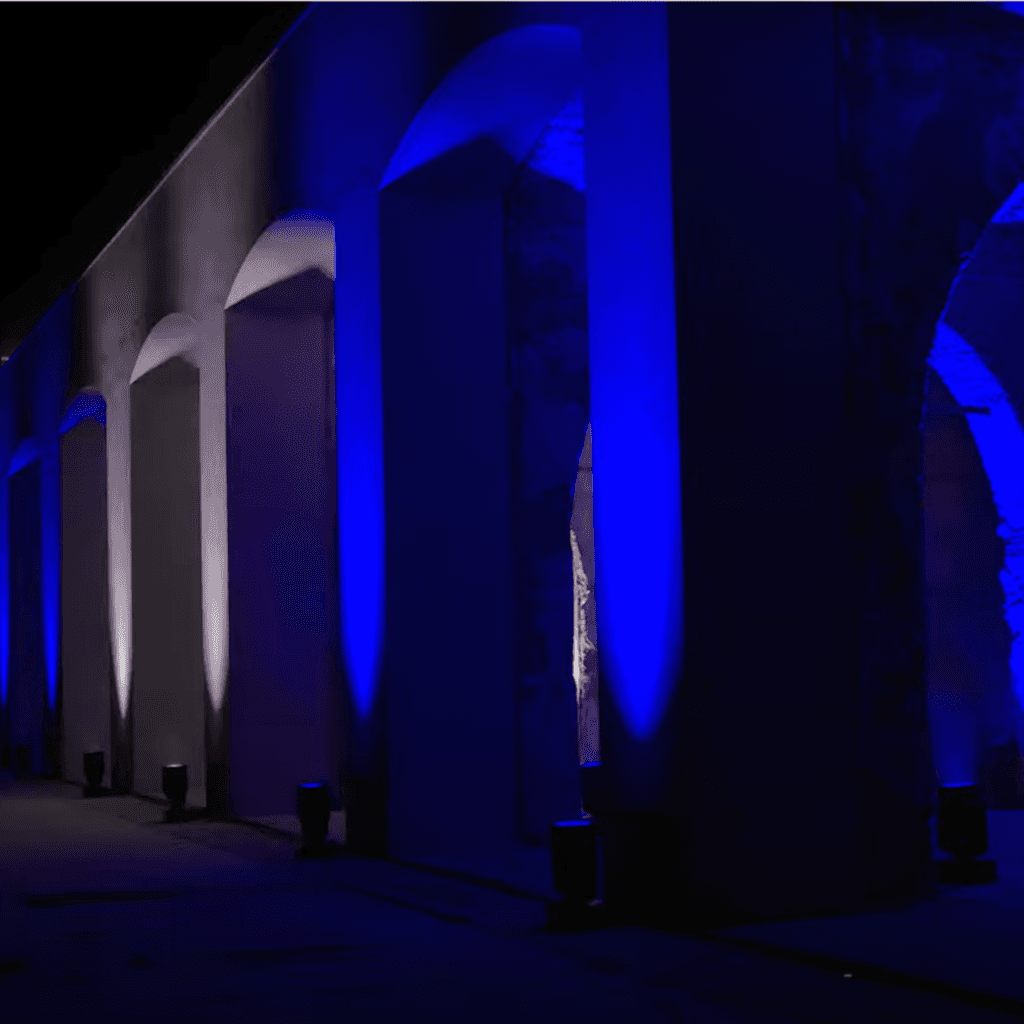

Claypaky Mini-B Aqua PX — compact size highlight

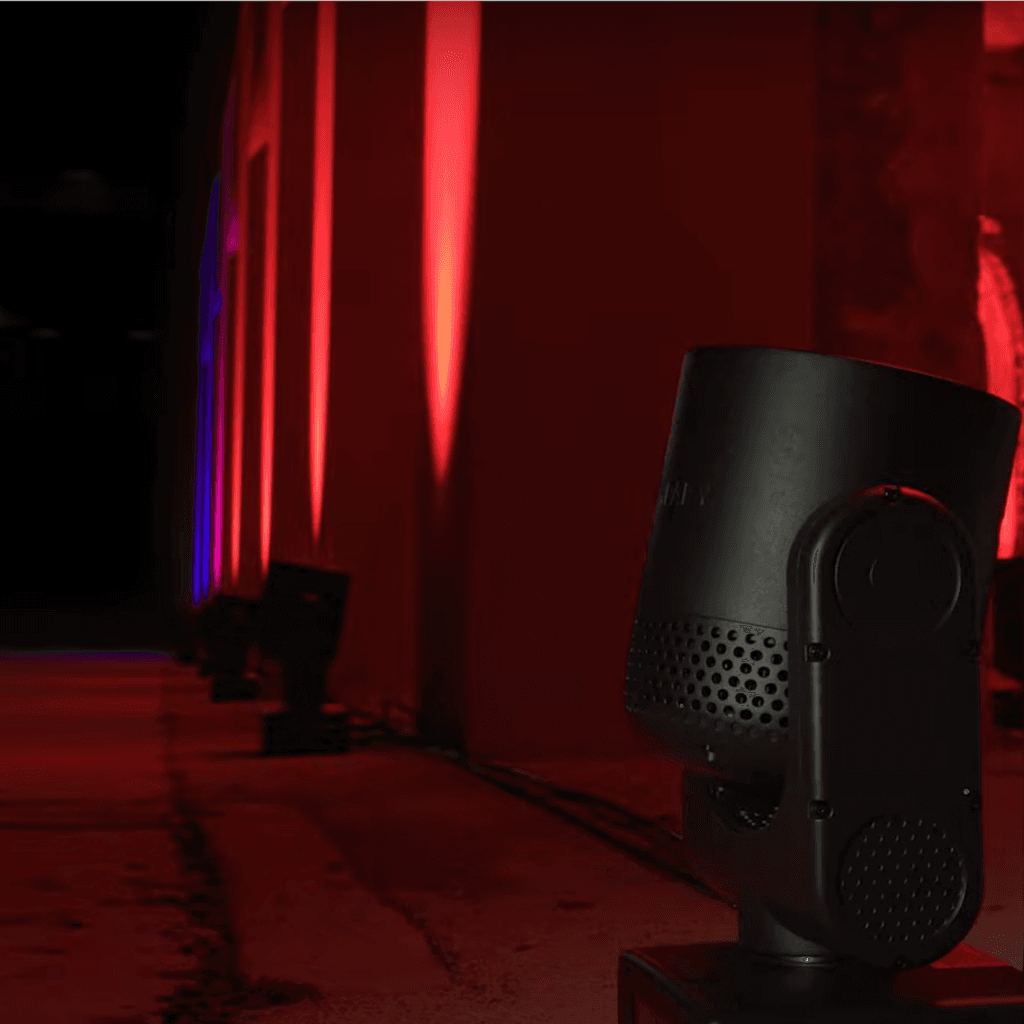

Claypaky Mini-B Aqua PX — pixel mapping highlight
Claypaky Shield Family IP66 badge — the Mini-B Aqua PX’s weatherproof rating

Applications

ConcertFestivalsLive eventsOutdoor / InstallStage designTouring

Features

  • Seven individually controllable 40 W RGBW LEDs for full pixel mapping
  • Wide 4°–55° motorised zoom
  • IP66 dust- and weatherproof Shield Family housing
  • Very fast, high-precision pan and tilt for dynamic shows
  • Linear CTO correction from 2,500 K to 8,000 K plus fifty colour macros
  • 24-bit electronic dimmer with five selectable curves and crossfade channels
  • Compact, lightweight build for tight rigging positions

Specifications

Light source

7 × 40 W RGBW LEDs

Light output

3,420 lm

CTO

Linear 2,500–8,000 K

Zoom

4°–55°

Front lens

Ø 153 mm

Movement

Pan 540° / tilt 260° (16-bit)

Dimmer

24-bit electronic, 5 curves

Control

DMX · Art-Net · sACN · RDM

Connections

5-pin XLR IN/OUT + RJ45 IN/OUT

Power

PowerCon True1 — 375 W max

Noise

40.2 dBA (silent mode)

Ingress protection

IP66 (Shield Family)

Weight

12.7 kg
