Mini-B

The smallest LED moving light by Claypaky — 3,420 lm from seven 40 W RGBW LEDs.

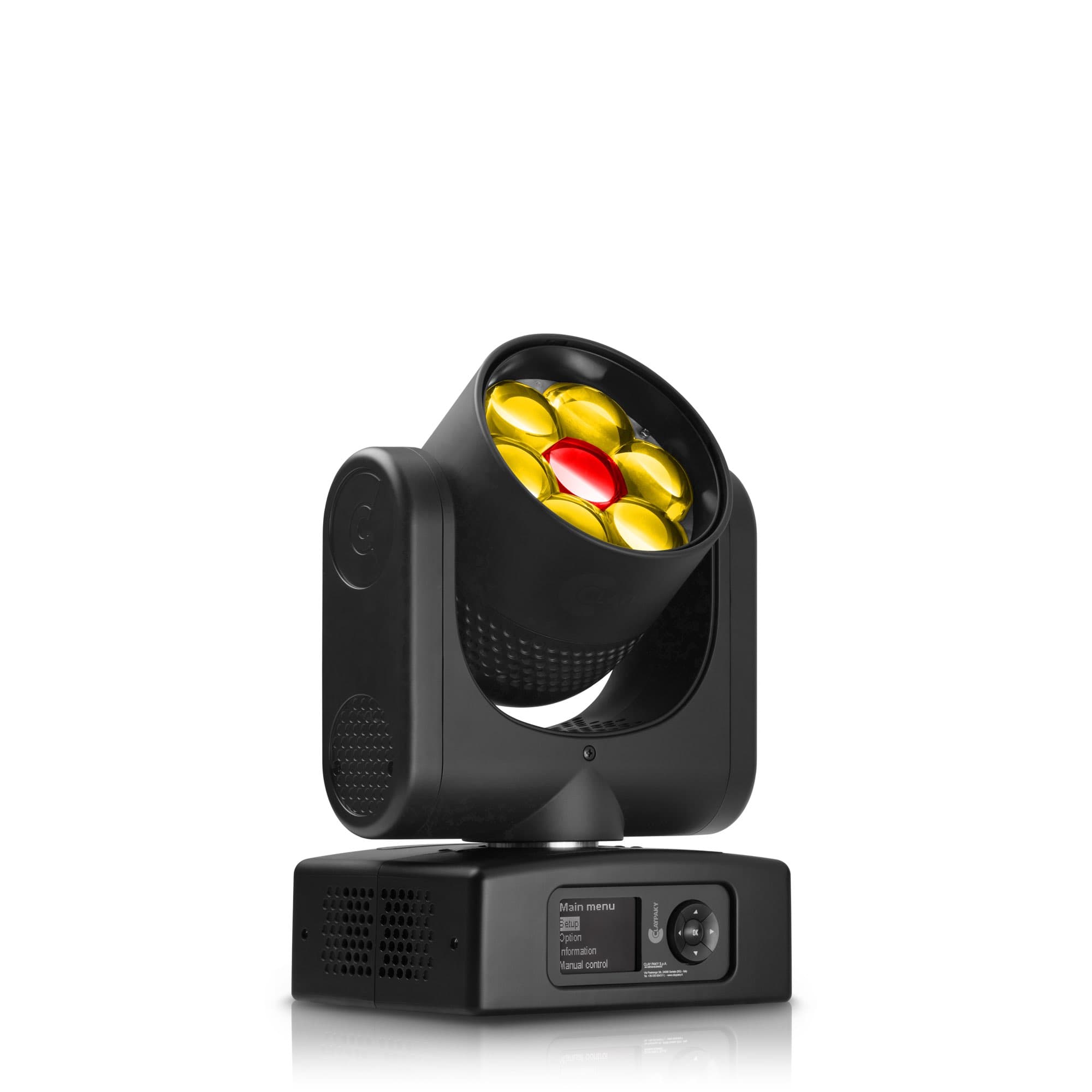

Claypaky Mini-B compact LED wash moving head — three-quarter studio view
Claypaky Mini-B — compact size highlight

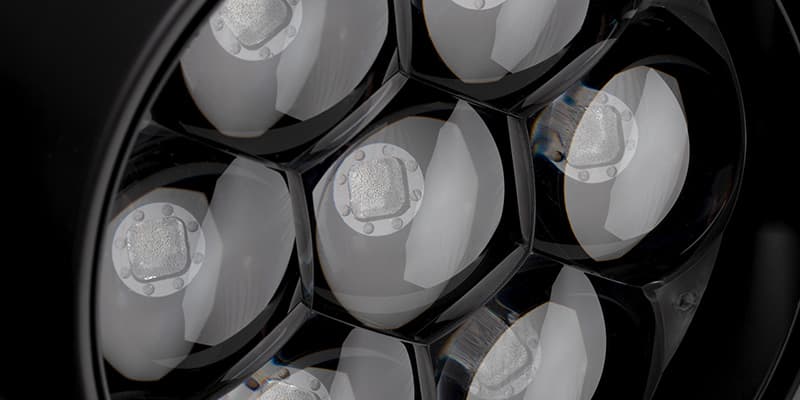

Claypaky Mini-B — operating modes highlight

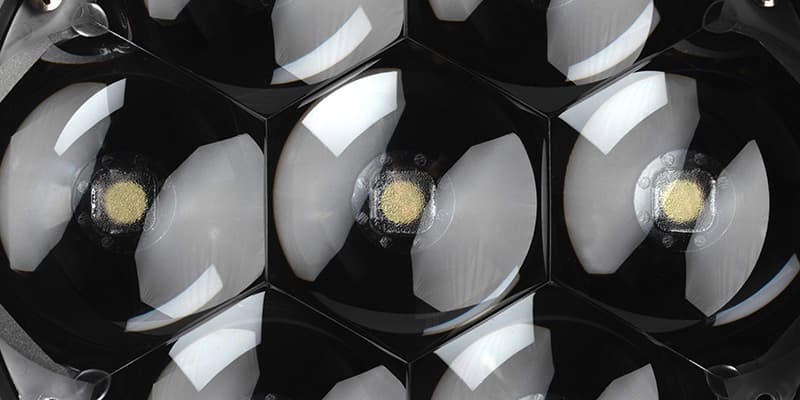

Claypaky Mini-B — dimmer curves highlight

Applications

ConcertLive eventsStage designTheatreTouringTV / Broadcast

Features

  • Seven Osram 40 W RGBW LEDs delivering 3,420 lm; very low power consumption
  • 4°–55° motorised zoom, switching between beam and wash roles
  • Independent central-LED and outer-ring control for dynamic effects
  • Fifty pre-installed effects and colour macros, plus crossfade channels
  • 7,000 K white with linear CTO 2,500–8,000 K for accurate colour-temperature control
  • 24-bit dimmer with five curves to preserve colour balance when dimming
  • Four operating modes (Constant, Auto, Silent, Theatre); compact 6.5 kg body

Specifications

Light source

7 × Osram 40 W RGBW LEDs

Light output

3,420 lm (integrating sphere)

Colour temperature

7,000 K

CTO

Linear 2,500–8,000 K

Colour mixing

RGB+W, 16-bit

Zoom

4°–55°

Front lens

Ø 140 mm

Movement

Pan 540° / tilt 260° (16-bit)

Dimmer

24-bit electronic, 5 curves

Control

DMX · Art-Net · sACN · RDM (web server)

Connections

5-pin XLR IN/OUT + RJ45 IN

Power

PowerCon True1 — 375 W max

Ingress protection

IP20

Weight

6.5 kg
