Midi-B FX

Midi-B with five rings of LED strip — a wash light that becomes part of the set.

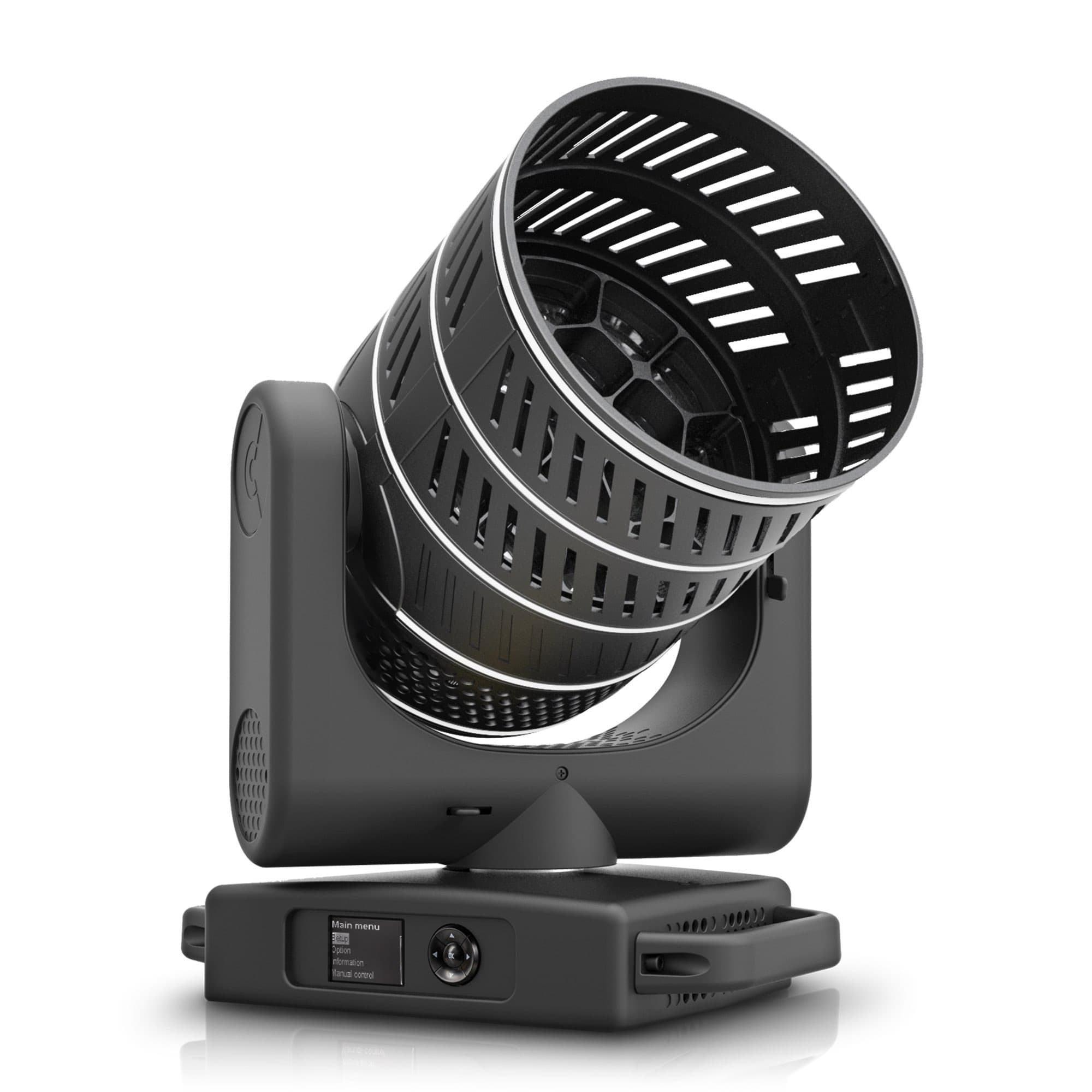

Claypaky Midi-B FX LED wash and set-design moving head — three-quarter studio view

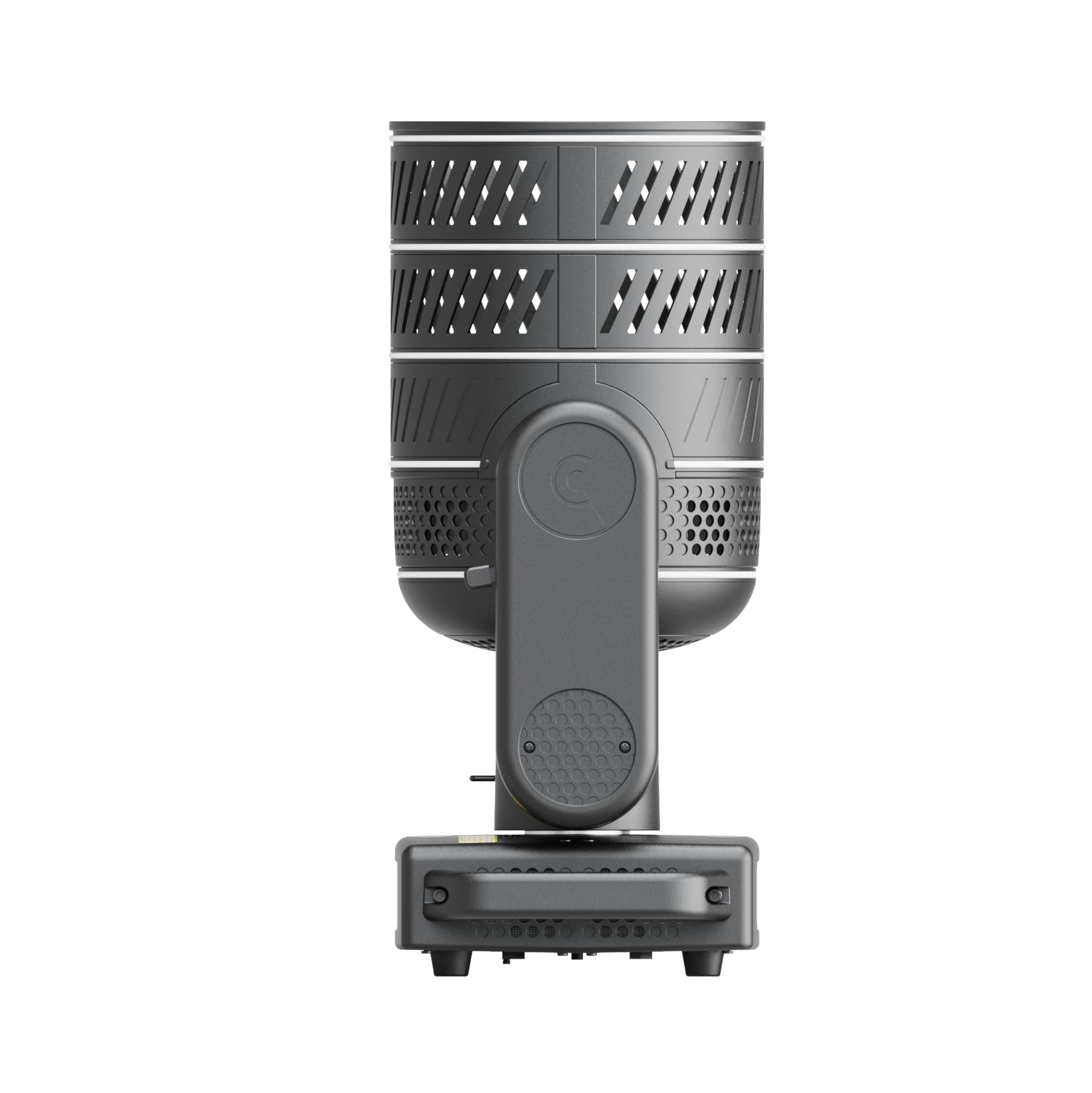

Claypaky Midi-B FX — side view

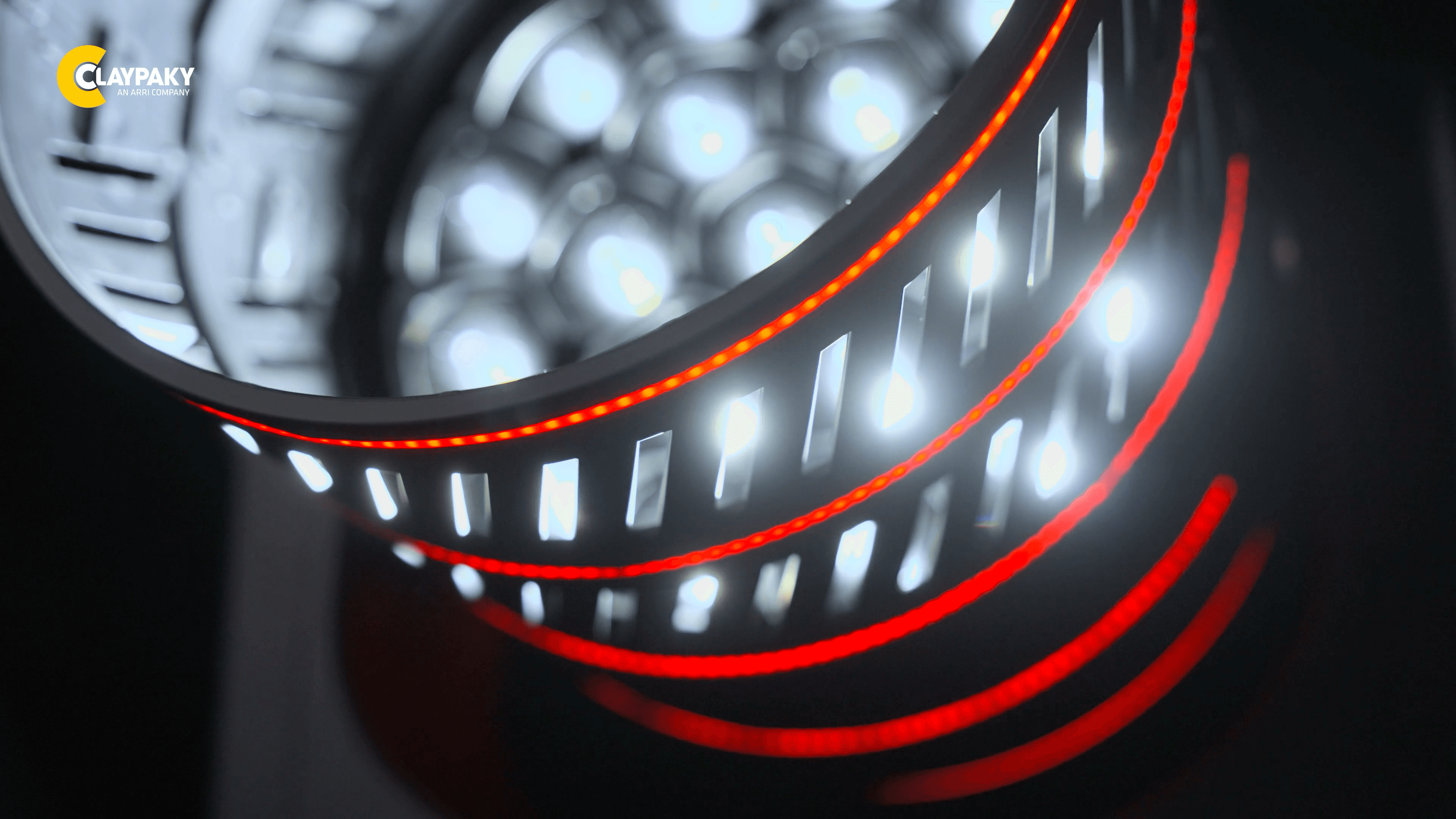

Claypaky Midi-B FX — independently controllable LED strip rings

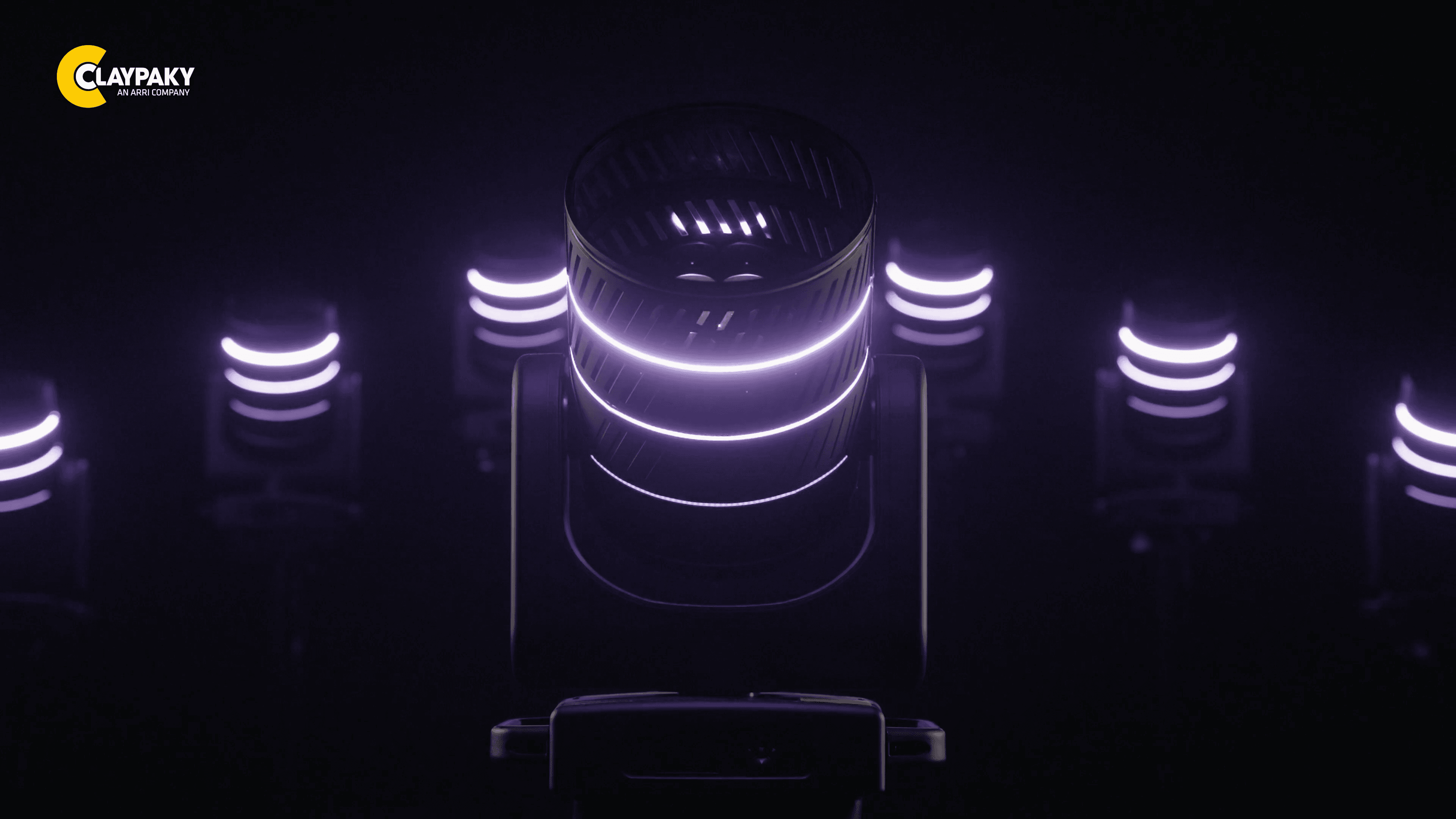

Claypaky Midi-B FX — set-design effect

Applications

ConcertLive eventsStage designTheatreTouringTV / Broadcast

Features

  • Dual-purpose design combining full RGBW wash output with decorative set-design lighting
  • Five independently controllable parallel RGB LED-strip rings around a long top hat
  • Optimised HD optical system for bright, efficient output with quiet, precise movement
  • 4°–50° versatile zoom range, as on the standard Midi-B
  • 24-bit electronic dimmer with five curves for balanced colour throughout the fade
  • Removable top hat allows conversion back to a standard Midi-B
  • 2,500–8,000 K colour-temperature correction with crossfade channels

Specifications

Light source

19 × Osram 40 W RGBW LEDs

Effect

5 independently controllable RGB LED-strip rings

Light output

11,400 lm

CTO

Linear 2,500–8,000 K

Zoom

4°–50°

Dimmer

24-bit electronic, 5 curves; electronic strobe

Movement

Pan 540° / tilt 220° (16-bit)

Control

DMX · Art-Net · sACN · RDM

Connections

5-pin XLR IN/OUT + RJ45 IN

Power

PowerCon True1 — ~1,000 W max

Noise

34.6 dBA (theatre) to 40.0 dBA (constant)

Ingress protection

IP20

Weight

19 kg
