Midi-B

Compact, bright RGBW wash beam — 11,400 lm from 19 LEDs in three controllable rings.

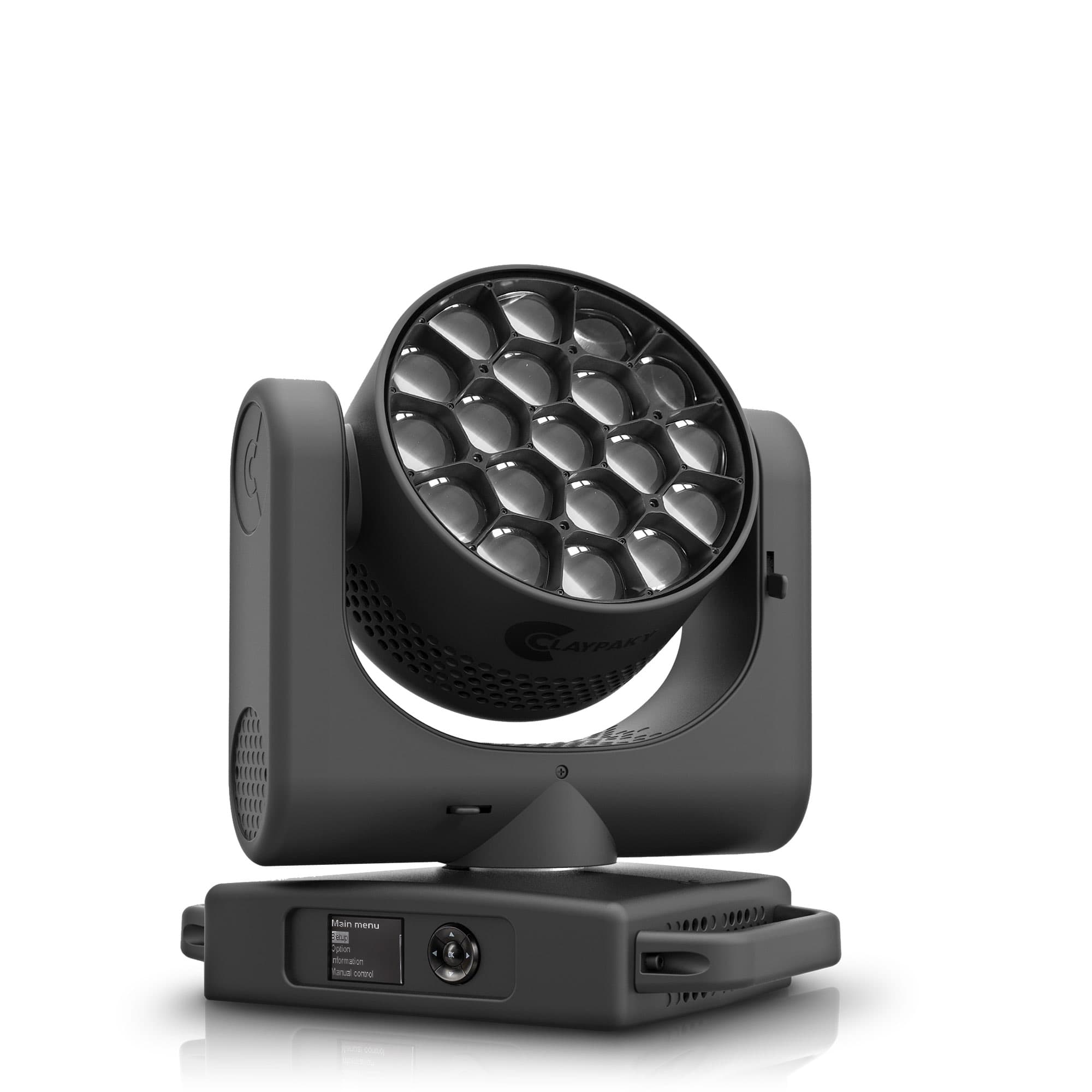

Claypaky Midi-B compact LED wash beam moving head — three-quarter studio view

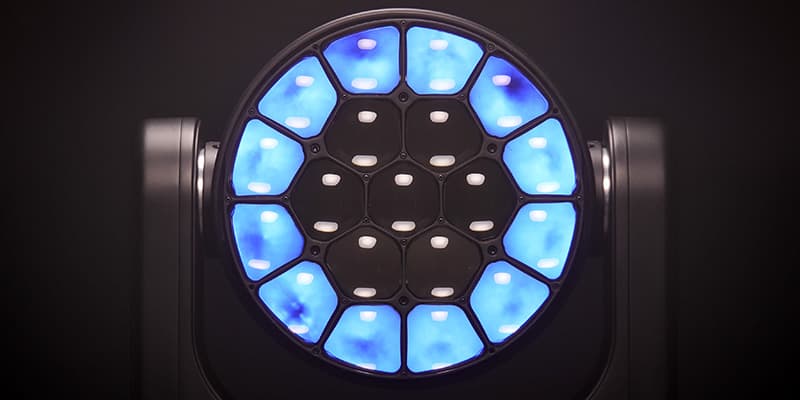

Claypaky Midi-B — HD-optimised optical system highlight
Claypaky Midi-B — 4°–50° zoom range highlight

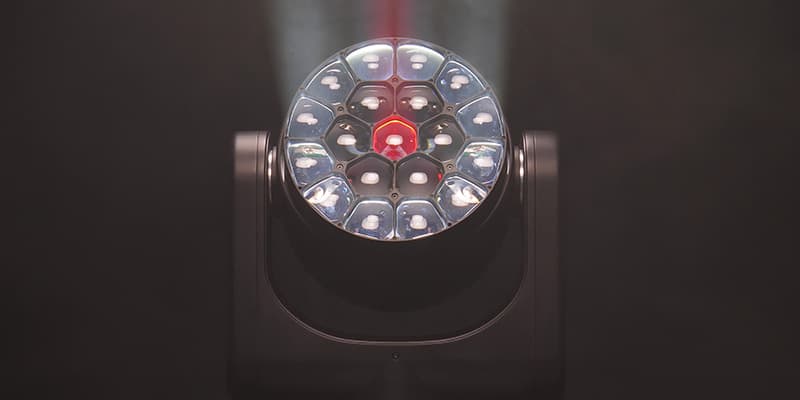

Claypaky Midi-B — multi-curve dimmer highlight

Applications

ConcertLive eventsStage designTheatreTouringTV / Broadcast

Features

  • HD-optimised optical system with special lens coating to eliminate light spillage
  • 4°–50° linear zoom, from ultra-dense aerial beam to smooth uniform wash
  • 19 RGBW LEDs in three independently controllable rings for backlighting and graphic effects
  • Four operating modes (Constant, Auto, Silent, Theatre) for noise/output balance
  • High-resolution 24-bit dimmer with five curves to hold colour balance across the fade
  • Colour macros plus linear 2,500–8,000 K colour-temperature control with crossfade
  • Networkable via Art-Net, sACN and RDM, with built-in web server and CloudIO compatibility

Specifications

Light source

19 × Osram 40 W RGBW LEDs

Light output

11,400 lm

CTO

Linear 2,500–8,000 K

Zoom

4°–50°

LED rings

Three independently controlled rings

Dimmer

24-bit electronic, 5 curves; strobe 25 f/s

Movement

Pan 540° / tilt 270° (16-bit)

Control

DMX · Art-Net · sACN · RDM

Connections

5-pin XLR IN/OUT + RJ45 IN

Power

PowerCon True1 — 830 VA max

Noise

34.5 dBA (theatre) to 41.2 dBA (constant)

Ingress protection

IP20

Weight

17 kg
