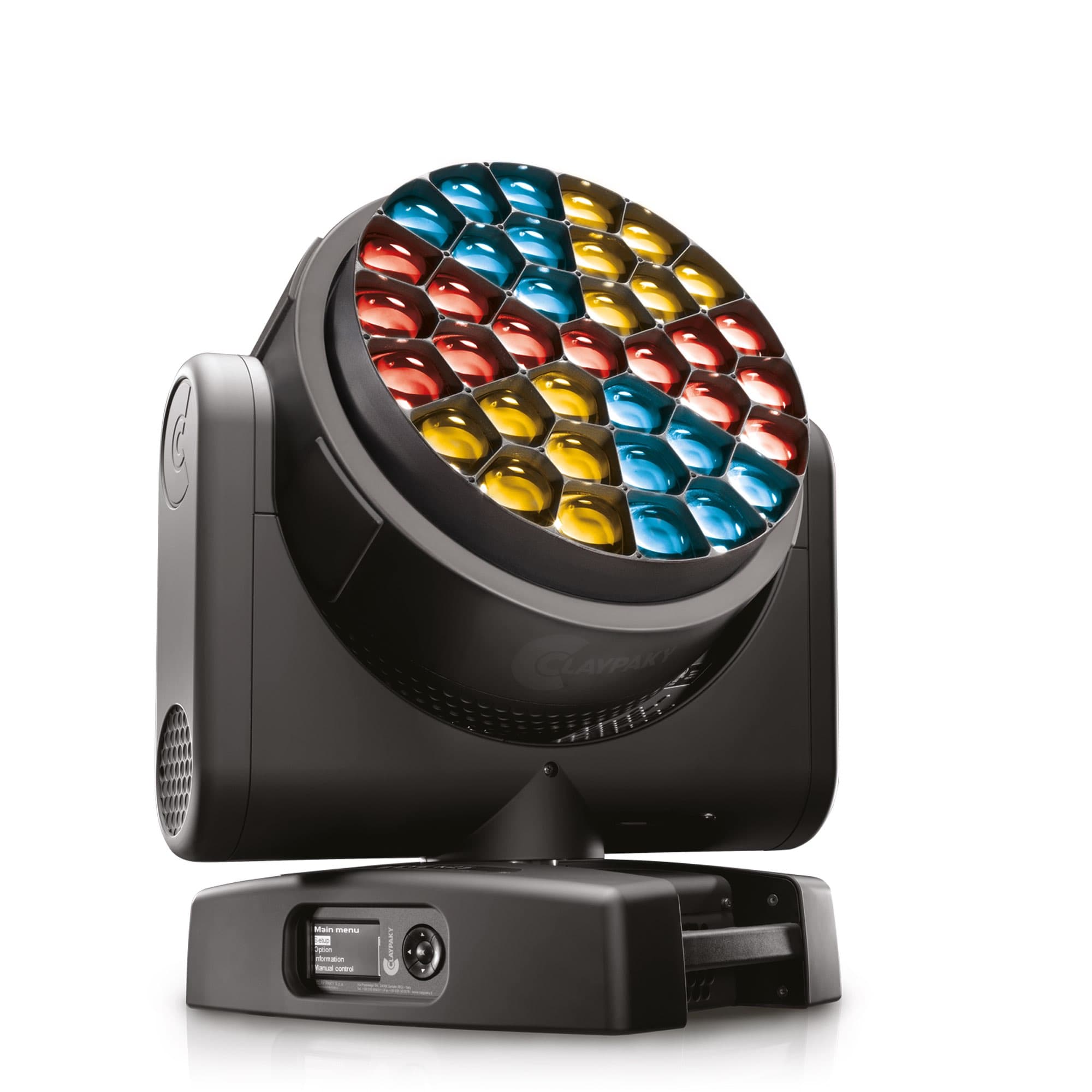

HY B-EYE K25
The bigger B-EYE — 16,100+ lm from 37 individually controlled 40 W RGBW LEDs.
Applications
ConcertFestivalsLarge venuesLive eventsTouringTV / Broadcast
Features
- Three operating modes: wash, beam and effects
- 37 individually controllable 40 W RGBW LEDs for pixel mapping
- Patented 37-lens optical system with a bidirectional rotating front lens
- Beam shaping via digital framing and beam-edge softening
- Strobe from 1 to 25 flashes per second
- Built-in Kling-Net for media-server integration
- CloudIO compatible with on-field colour calibration
Specifications
Light source
37 × 40 W RGBW LEDs
Light output
16,100+ lm (integrating sphere)
Colour temperature
6,000 K (2,500–8,000 K emulation)
Zoom
4°–60°
Optical system
Patented 37-lens system
Dimmer
24-bit, 4 curves; strobe 1–25 f/s
Movement
Pan 540° / tilt 210°
Control
DMX · Art-Net · sACN · RDM
Connections
3/5-pin XLR IN/OUT + RJ45 IN
Power
PowerCon True1 — 1,250 VA max
Ingress protection
IP20
Weight
27.5 kg
