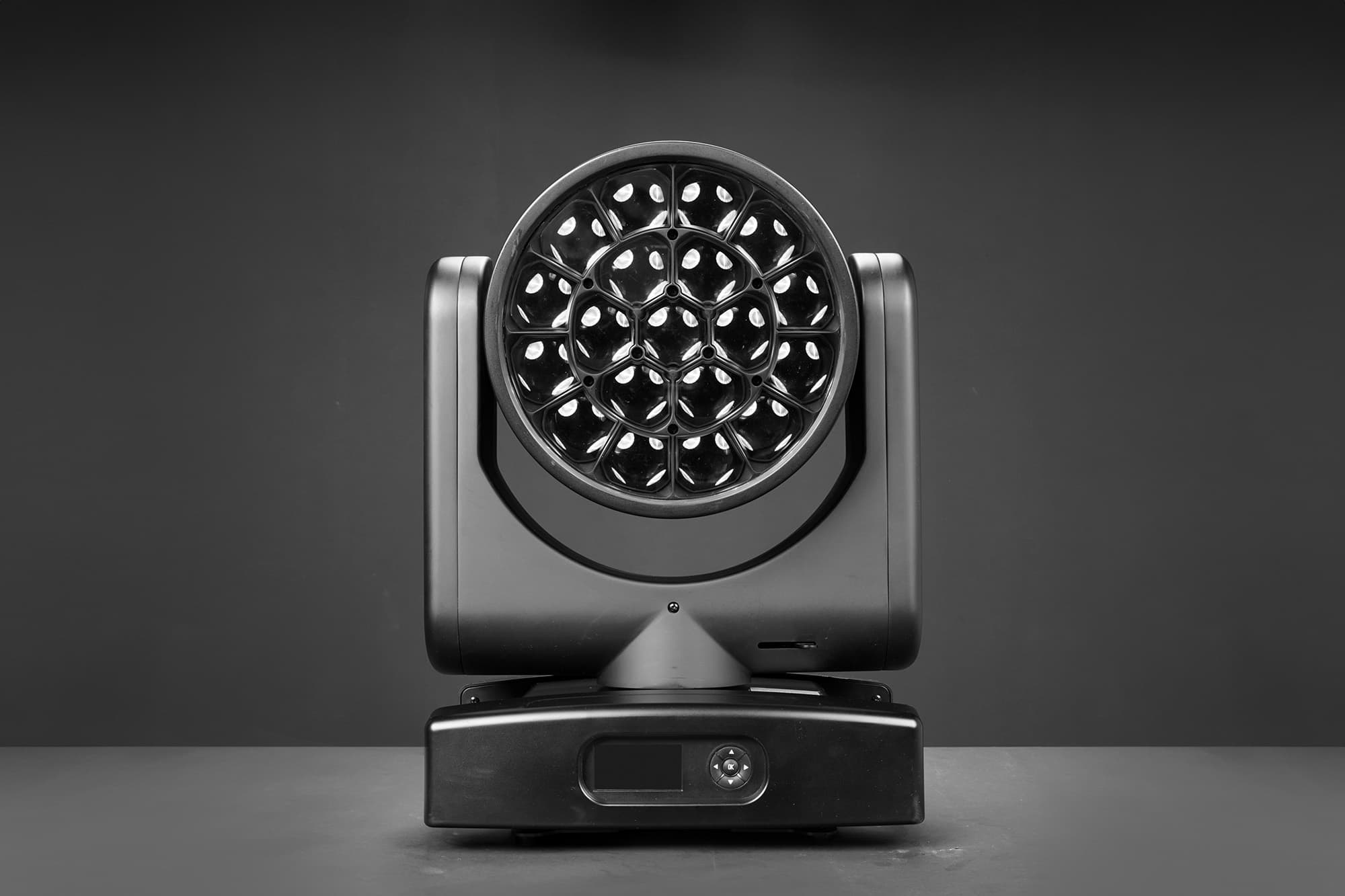

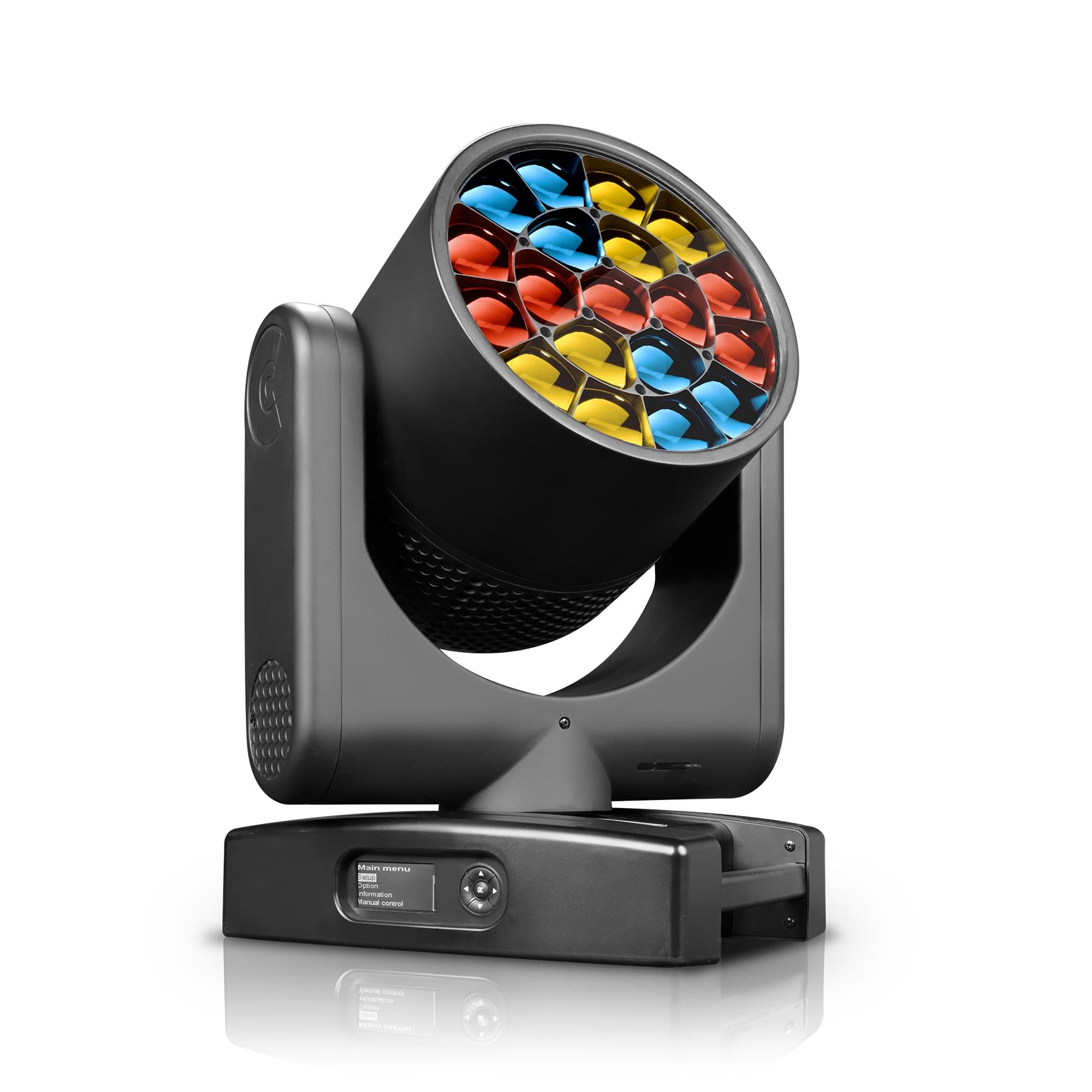

HY B-EYE K15 Aqua
IP66 HY B-EYE — 13,500 lm of wash, beam and effects, weatherproof for any conditions.
Applications
ConcertFestivalsLive eventsOutdoor / InstallTouringTV / Broadcast
Features
- IP66-rated (Shield Family) for reliable outdoor use in any weather
- 19 × 40 W RGBW LEDs with individual control and pixel mapping
- Patented 19-lens optical system combining wash, beam and effects
- Bidirectional rotating front lens with Advanced Multi-Layer Management
- Marine Shield protection against salt air and corrosion
- Built-in web server, CloudIO compatible
- Wide colour temperature range, 2,400–9,500 K
Specifications
Light source
19 × 40 W RGBW LEDs
Light output
13,500 lm (integrating sphere)
Colour temperature
2,400–9,500 K
CRI
Up to 70

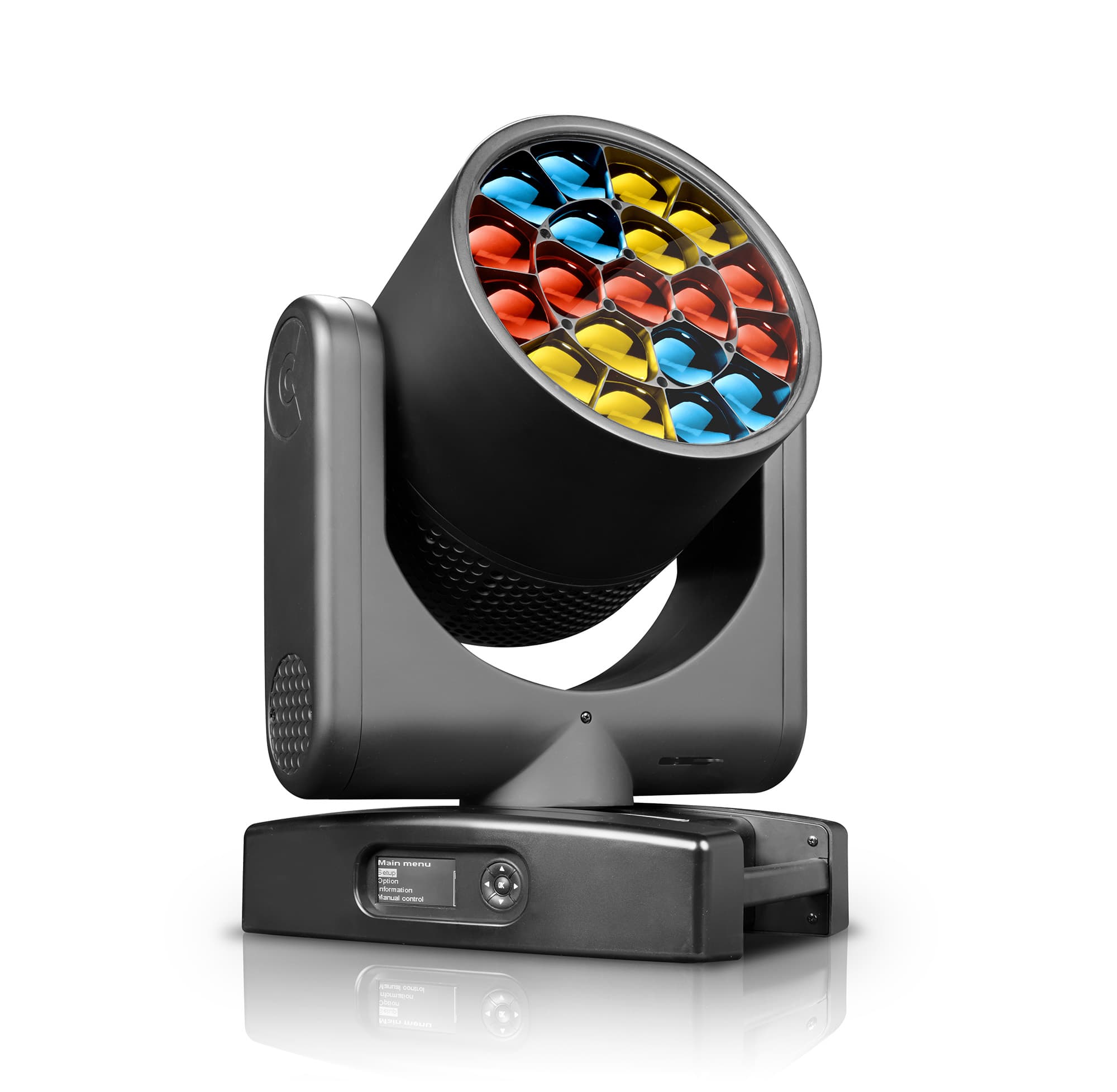

Zoom
4°–60°
Optical system
Patented 19-lens system
Dimmer
24-bit, 4 curves; strobe 1–25 f/s
Movement
Pan 540° / tilt 248° (16-bit)
Control
DMX · Art-Net · sACN · RDM · CRMX

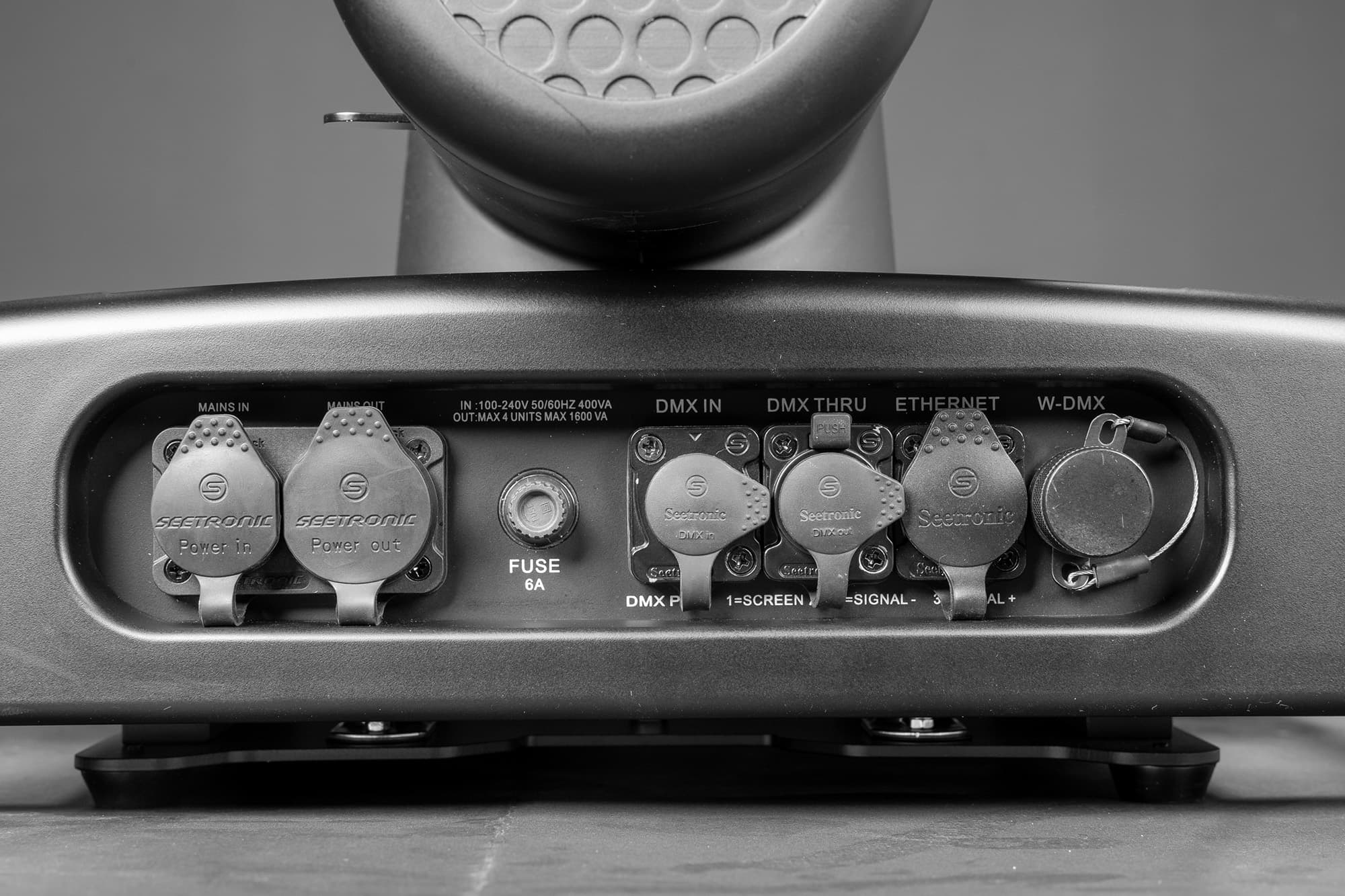

Connections
5-pin XLR IN/THRU + RJ45 IN
Power
PowerCon True1 — 680 W max
Ingress protection
IP66 (Shield Family)
Weight
27.8 kg
