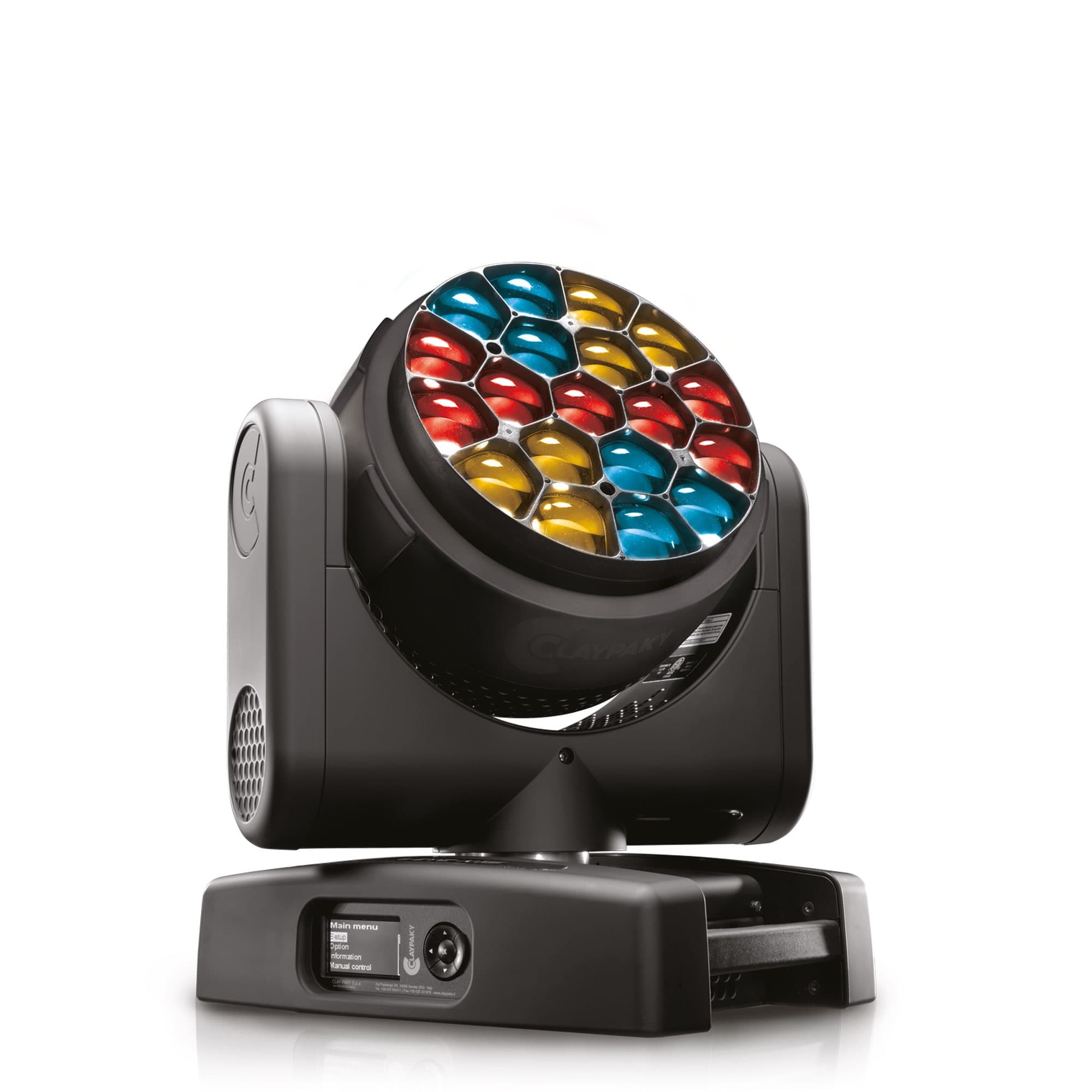

HY B-EYE K15
Wash, beam and Kaleido-effects moving head — 13,500 lm from 19 individually controlled RGBW LEDs.
Applications
ConcertFestivalsLive eventsStage designTouringTV / Broadcast
Features
- Three operating modes: wash, beam and FX (Kaleido effects)
- 19 individually controllable 40 W RGBW LEDs for pixel mapping
- Bidirectional rotating front lens for kaleidoscopic projections
- Retractable zoom lens with a 4°–60° range
- Digital framing in both wash and beam modes, with beam-edge softening
- Built-in Kling-Net for media-server integration
- CloudIO compatible with on-field colour calibration
Specifications
Light source
19 × 40 W RGBW LEDs
Light output
13,500 lm (integrating sphere)
Colour temperature
6,000 K (2,500–8,000 K emulation)
Zoom
4°–60°
Optical system
Patented 19-lens system
Dimmer
24-bit, 4 curves; strobe 1–25 f/s
Movement
Pan 540° / tilt 200°
Control
DMX · Art-Net · sACN · RDM
Connections
3/5-pin XLR IN/OUT + RJ45 IN
Power
PowerCon True1 — 700 VA max
Ingress protection
IP20
Weight
20.7 kg
