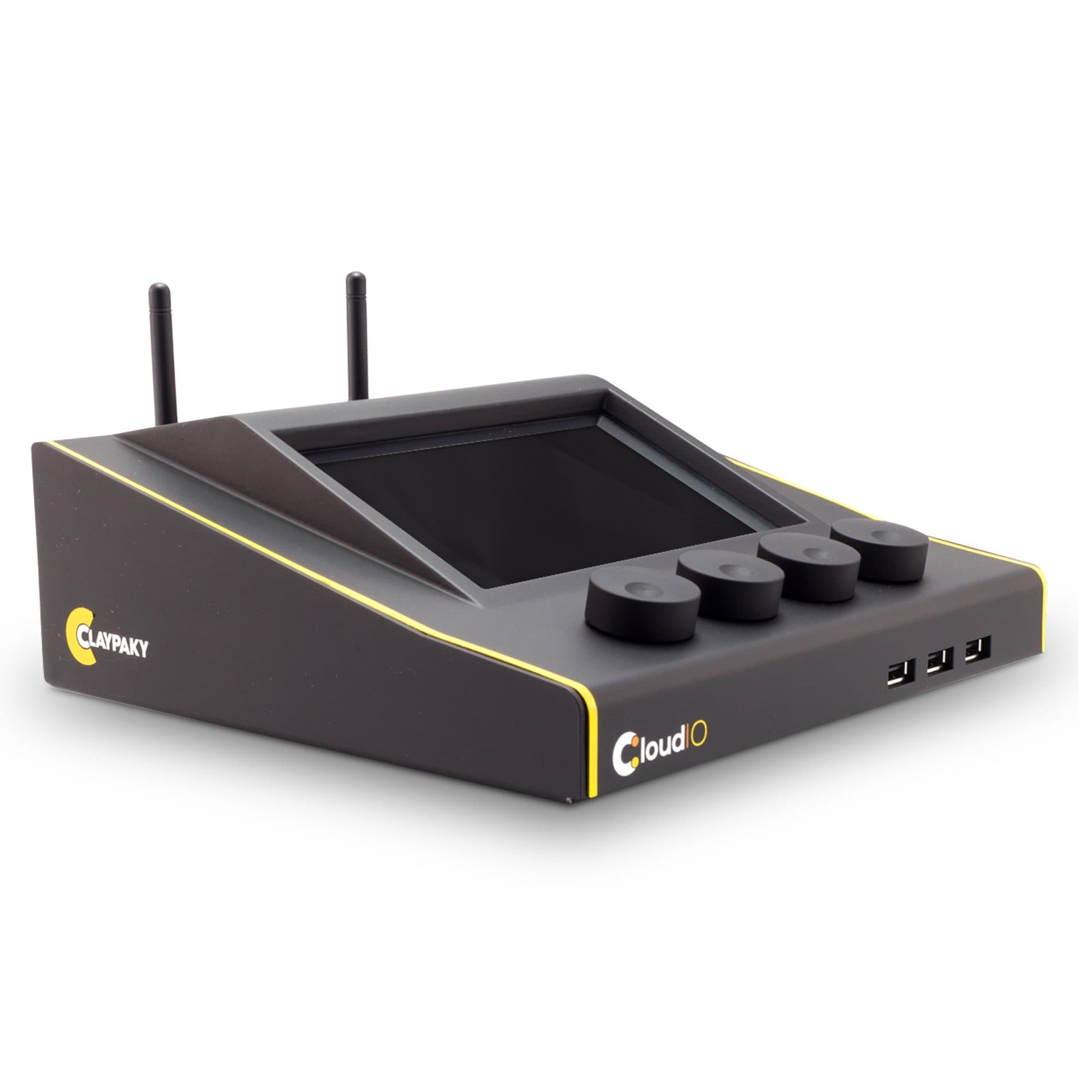

CloudIO

Digital IoT device — cloud monitoring, preventive maintenance and remote RDM setup for the rig.

Applications

Multi-brand compatibility, with fixtures shown on a maintenance screen for tool-free setup
Automatic overview of fixture information across the rig
Cloud-stored data supporting preventive maintenance and service planning
Live remote assistance, letting support staff view fixture status in real time
Full remote setting of all RDM parameters on Clay Paky fixtures via an optimised web interface

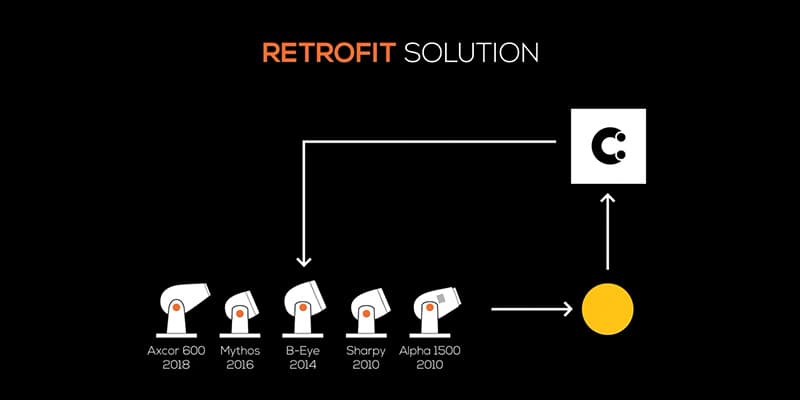

Retrofit system compatible with most Clay Paky fixtures
Two pass-through DMX connections to interface with fixtures in series

Display

7-inch LCD capacitive touch screen

DMX

2 in/out pass-through (up to 31 fixtures in series)

Network

Art-Net port; 2× Ethernet (Art-Net / TCP-IP)

Internet

Cable or Wi-Fi (2 external antennas)

Controls

4 encoders; 3× USB

Power

Internal power supply

Weight

1.5 kg (3.3 lbs)

Dimensions

240 × 232 × 93 mm
