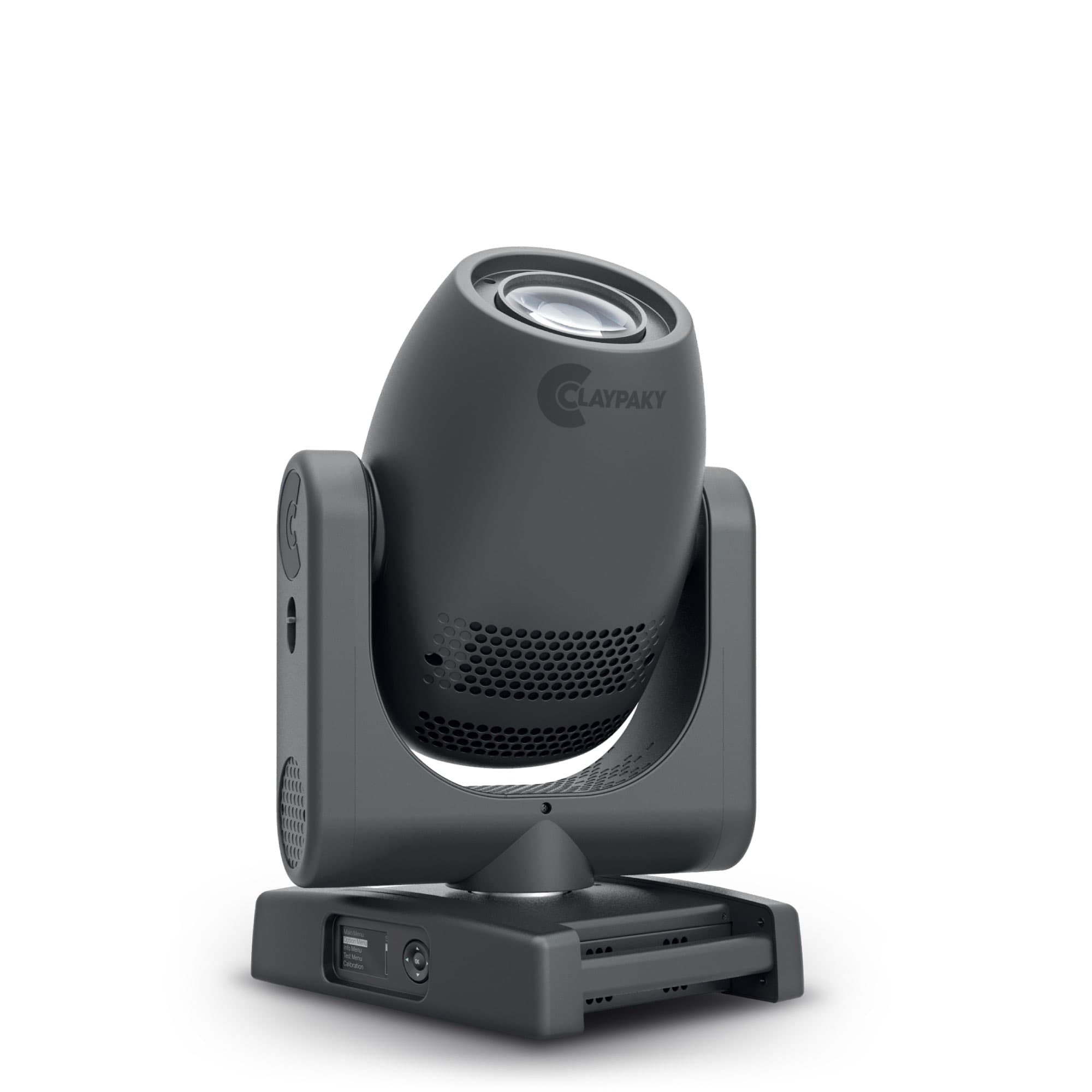

Axcor Spot 300
Compact 180 W LED spot moving head — 7,000 lm with CMY, twin gobo wheels and prism.
Applications
ConcertLive eventsStage designTheatreTV / Broadcast
Features
- 180 W white LED engine, 7,000 lm output, native 7,000 K, CRI 70+
- Linear zoom with motorised focus that holds focus throughout the range
- CMY colour mixing plus a 7-position colour wheel (includes a CTO filter)
- One rotating gobo wheel (7 indexable gobos) and one static wheel (10 fixed gobos)
- Rotating 4-facet prism, mechanical iris and frost filter
- 16-bit electronic dimmer with 4 selectable curves; electronic strobe
- Art-Net, sACN, RDM and built-in web server control
Specifications
Light source
180 W white LED
Light output
7,000 lm
Colour temperature
7,000 K
CRI
70+
Zoom
7.8°–42.4° linear (5:1 optics)
Focus
Motorised focus lens
Colour
CMY + 7-colour wheel (incl. CTO)
Gobos
7 rotating (indexable) + 10 static
Prism
Rotating 4-facet, bidirectional
Iris
Mechanical
Movement
Pan 540° / tilt 270° (16-bit)
Control
DMX · Art-Net · sACN · RDM
Power
PowerCon — 340 VA max
Ingress protection
IP20
Weight
20.2 kg
