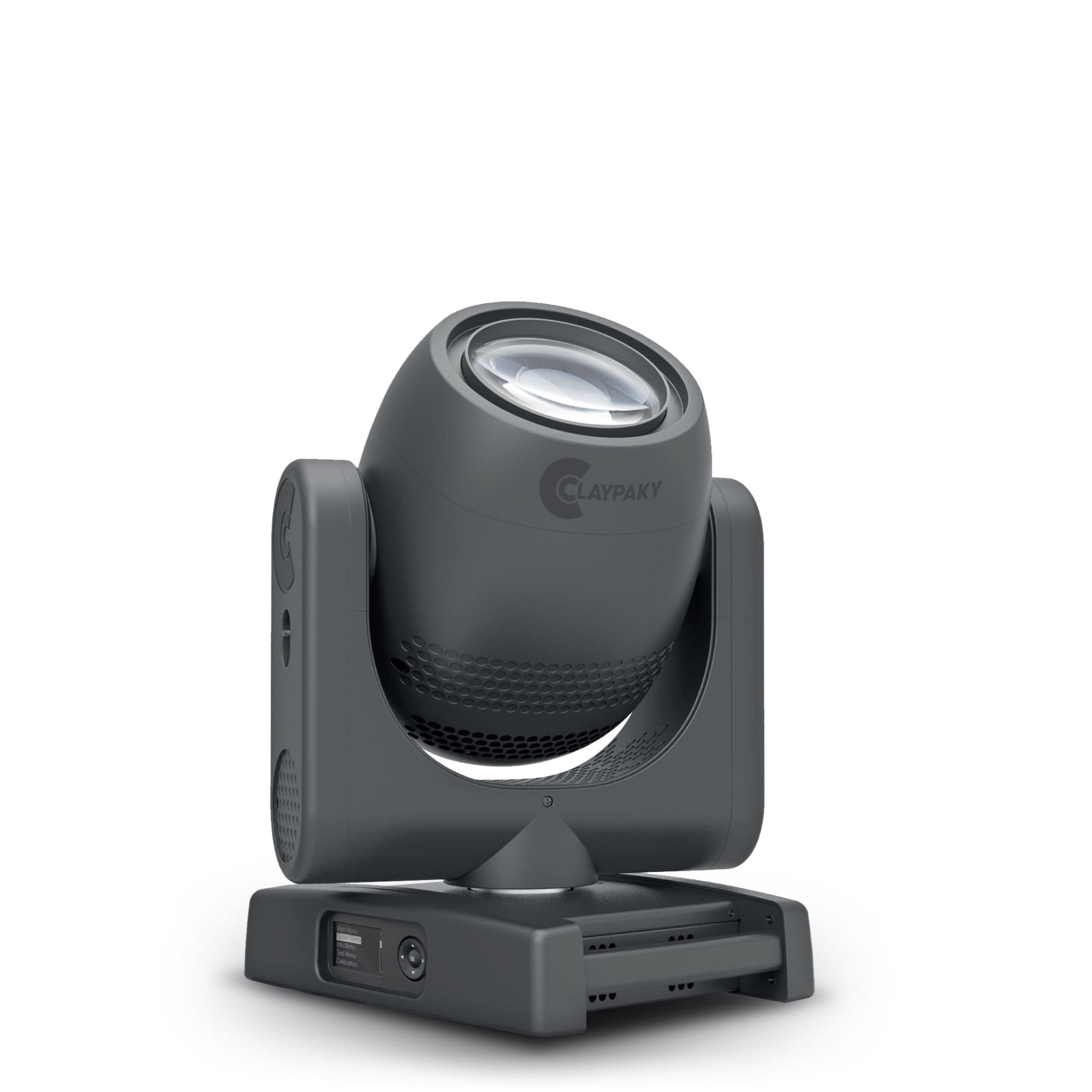

Axcor Beam 300
Compact 110 W LED beam moving head — a razor 1.9° beam with an 8-facet prism.
Applications
ConcertLive eventsStage designTheatreTV / Broadcast
Features
- 110 W white LED engine, 1,800 lm, native 7,600 K, CRI 70+
- Super-concentrated 1.9° beam through a 140 mm front lens with motorised focus
- 14-position colour wheel and a 17-gobo static wheel
- Rotating 8-facet prism, indexable and bidirectional
- 16-bit electronic dimmer with 4 curves; electronic strobe
- Standard and Sharpy DMX modes; Art-Net, RDM, sACN, web server
- Compact sub-18 kg body with quiet selectable fan modes
Specifications
Light source
110 W white LED
Light output
1,800 lm
Colour temperature
7,600 K
CRI
70+
Beam aperture
1.9°
Front lens
Ø 140 mm
Focus
Motorised focus lens
Colour wheel
14 colours
Gobos
17 static
Prism
Rotating 8-facet, bidirectional
Dimmer
16-bit electronic, 4 curves
Movement
Pan 540° / tilt 270°
Control
DMX · Art-Net · sACN · RDM
Power
PowerCon — 215 VA max
Ingress protection
IP20
Weight
17.6 kg
