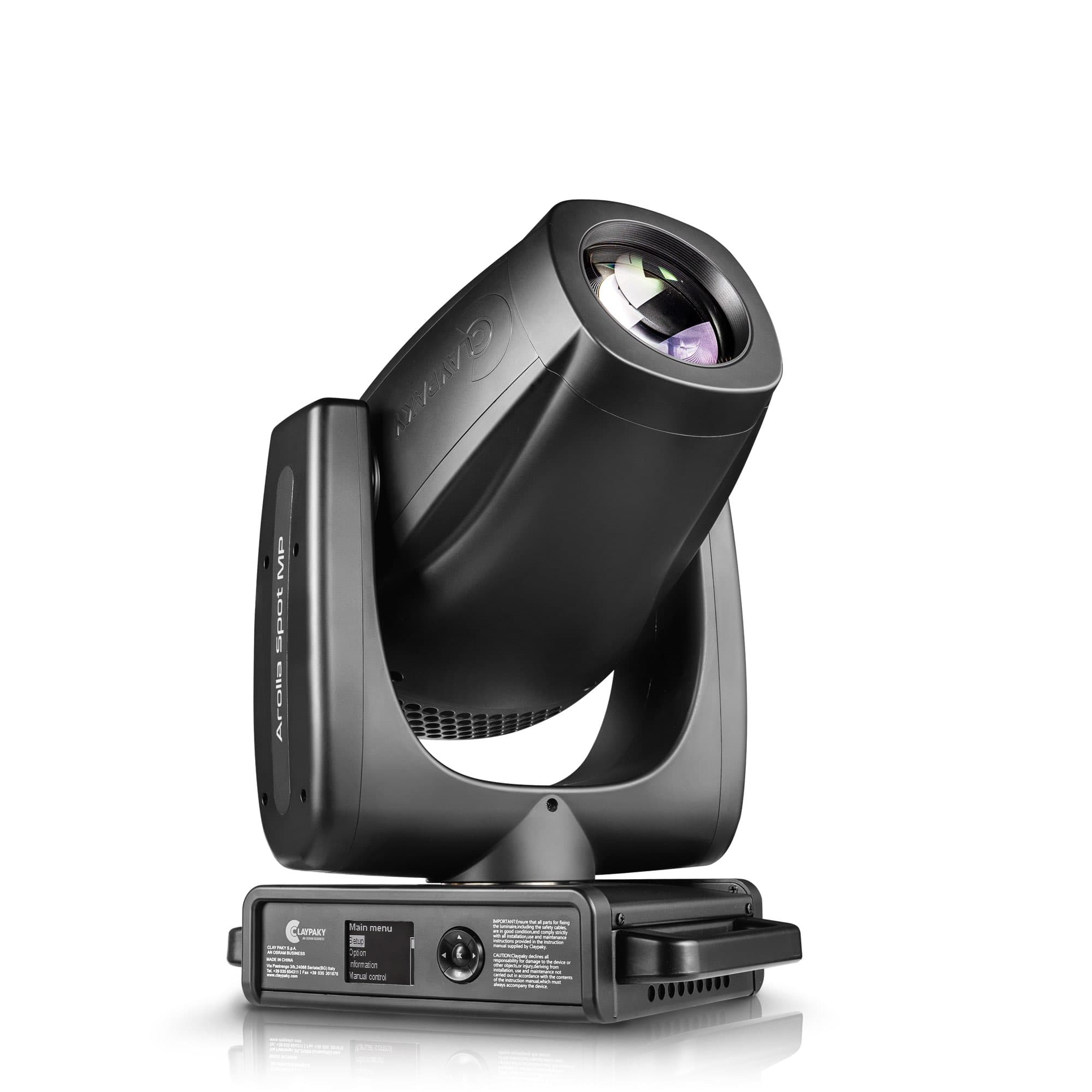

Arolla Spot MP
Compact LED spot moving head — 22,054 lm, twin gobo wheels and eSWAP profile conversion.
Applications
ConcertLive eventsStage designTheatreTouringTV / Broadcast
Features
- Over 22,000 lm from a compact 470 W white LED engine

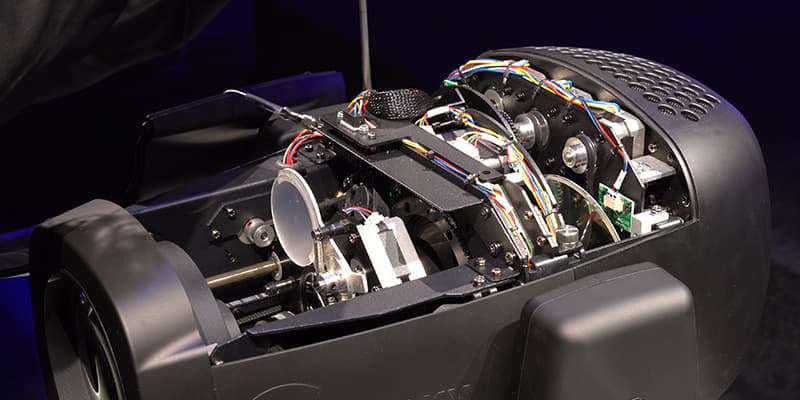

- eSWAP interchangeable gobo / framing module for spot-to-profile conversion
- Twin rotating gobo wheels, 7 HD indexable gobos each

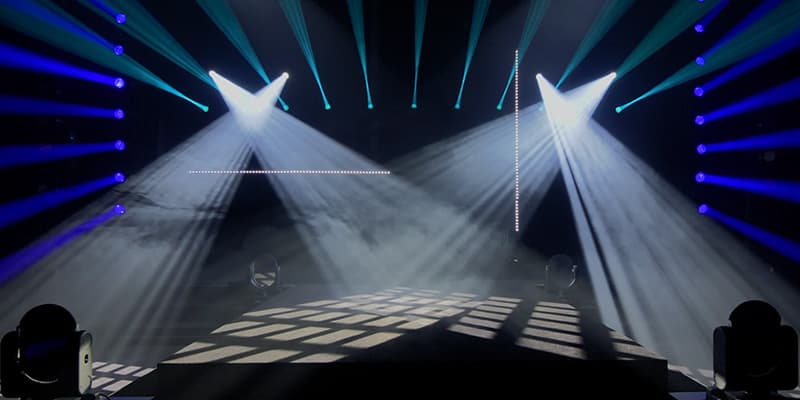

- Go-Bright technology for bright, colour-accurate gobo projection

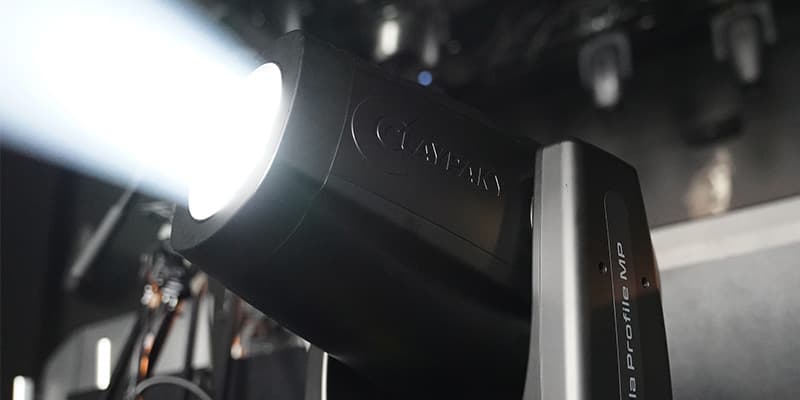

- Native ~6,000 K source with a selectable CRI ~90 filter
- 6.2°–48.8° motorised zoom with CMY mixing and a 7-colour wheel
- Four-facet rotating prism, animation wheel and motorised iris
Specifications
Light source
470 W white LED
Light output
22,054 lm (integrating sphere)
Colour temperature
6,000 K (native)
CRI
70+ native; up to ~90 with selectable filter
Zoom
6.2°–48.8° linear
Front lens
Ø 120 mm
Colour
Linear CMY + CTO, 7-colour wheel with high-CRI filter
Gobos
2 rotating wheels, 7 HD indexable gobos each
Effects
Animation wheel, 4-facet prism, motorised iris, frost
Movement
Pan 540° / tilt 270° (16-bit)
Control
DMX · Art-Net · sACN · RDM
Power
PowerCon True1 — 740 VA max
Ingress protection
IP20
Weight
Under 24 kg
