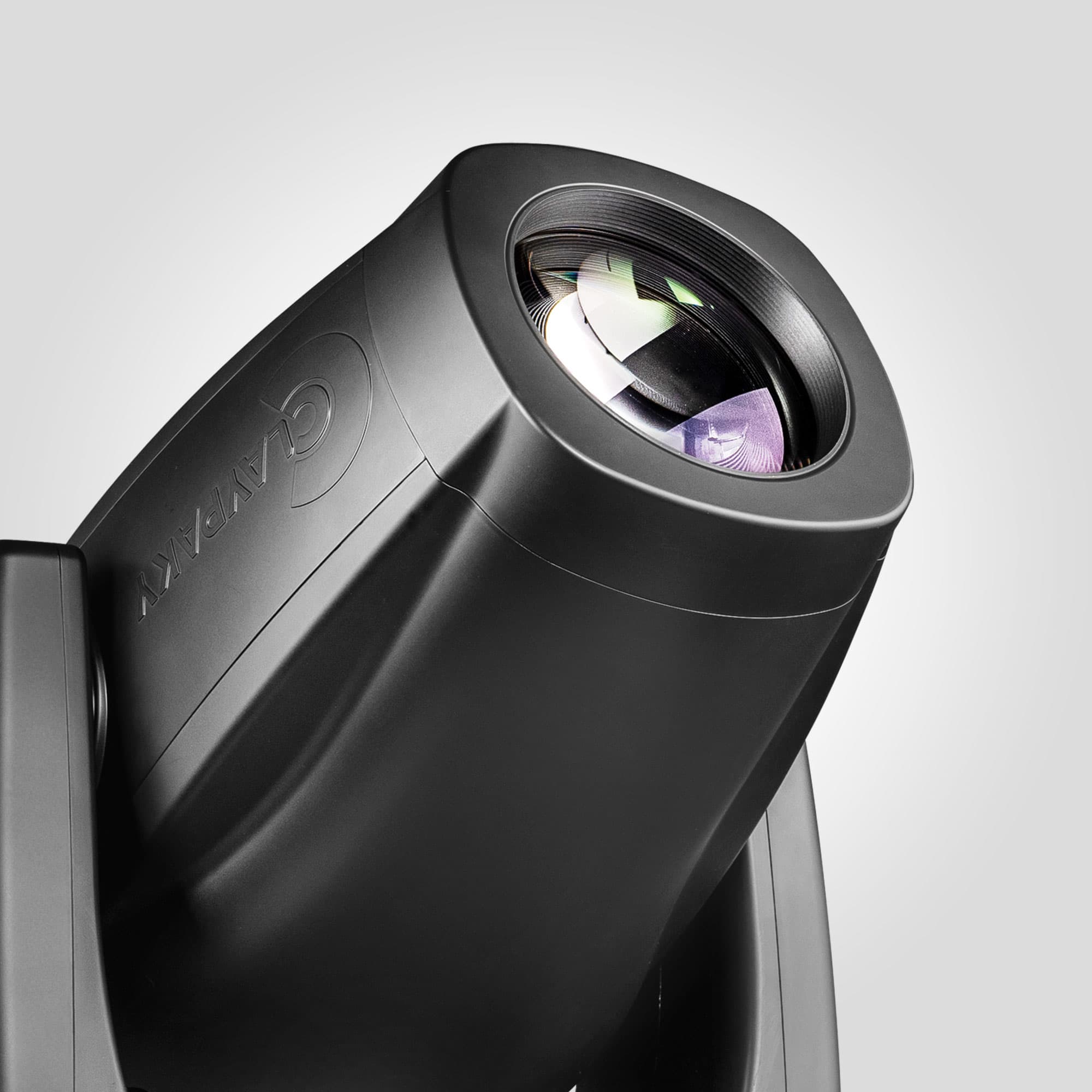

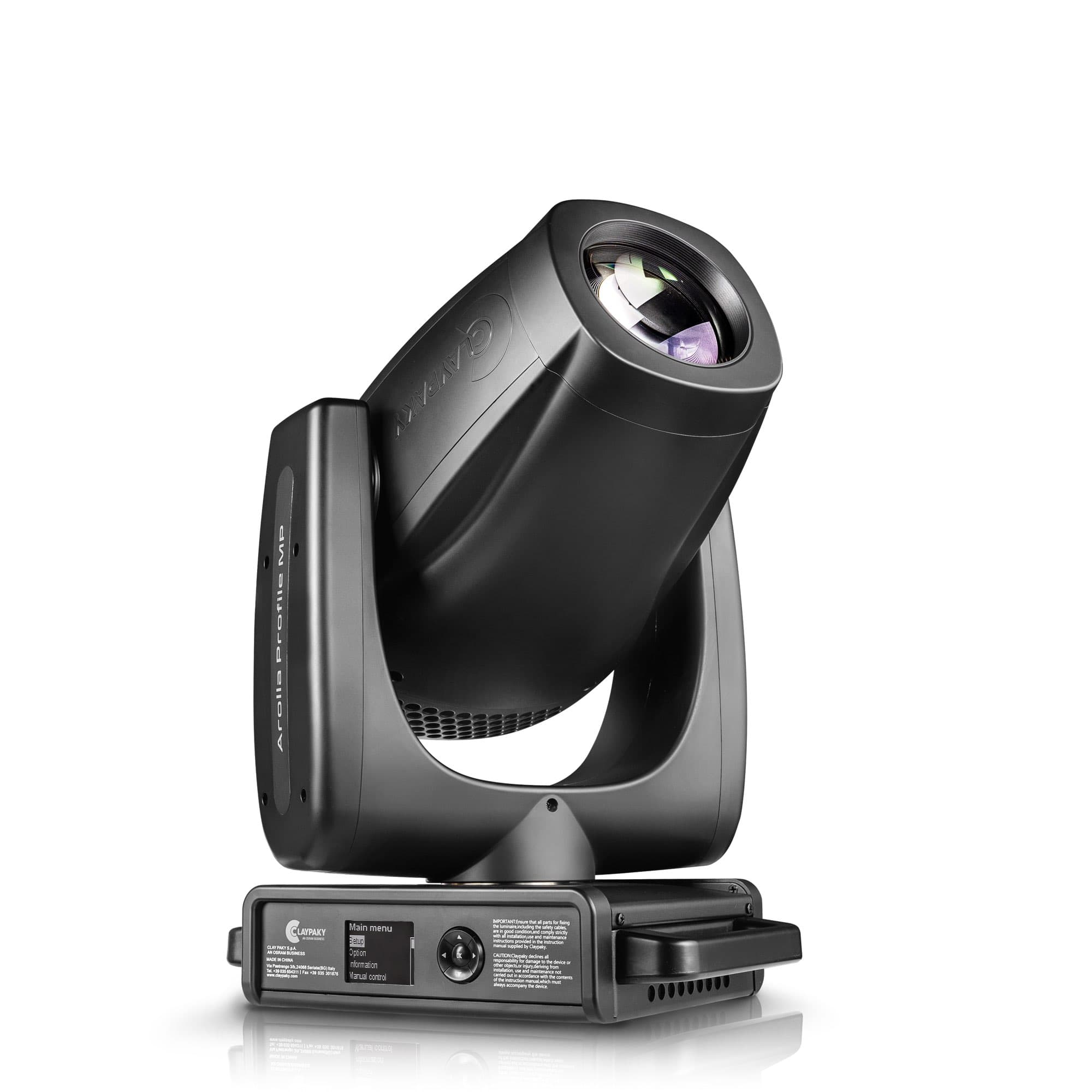

Arolla Profile MP
Compact LED profile moving head — 22,054 lm from a 470 W engine, with eSWAP spot conversion.
Applications
ConcertLive eventsStage designTheatreTouringTV / Broadcast
Features
- Over 22,000 lm from a compact 470 W white LED engine
- eSWAP interchangeable framing / gobo module for profile-to-spot conversion
- Go-Bright technology for bright, colour-accurate gobo projection
- Native ~6,000 K source with a selectable CRI ~90 filter
- 6.2°–48.8° motorised zoom with linear CMY mixing and a 7-colour wheel
- Four-blade framing system with ±60° rotation and total-curtain blackout
- One of the lightest fixtures in its class at around 25 kg
Specifications
Light source
470 W white LED
Light output
22,054 lm (integrating sphere)
Colour temperature
6,000 K (native)
CRI
70+ native; up to ~90 with selectable filter
Zoom
6.2°–48.8°
Front lens
Ø 120 mm
Colour
Linear CMY + CTO, 7-colour wheel with high-CRI filter
Gobos
1 rotating wheel, 7 HD indexable gobos
Effects
Animation wheel, 4-facet prism, motorised iris
Framing
4 blades, ±60° rotation; eSWAP-interchangeable
Movement
Pan 540° / tilt 270° (16-bit)
Control
DMX · Art-Net · sACN · RDM
Power
PowerCon True1 — 740 VA max
Ingress protection
IP20
Weight
25 kg
