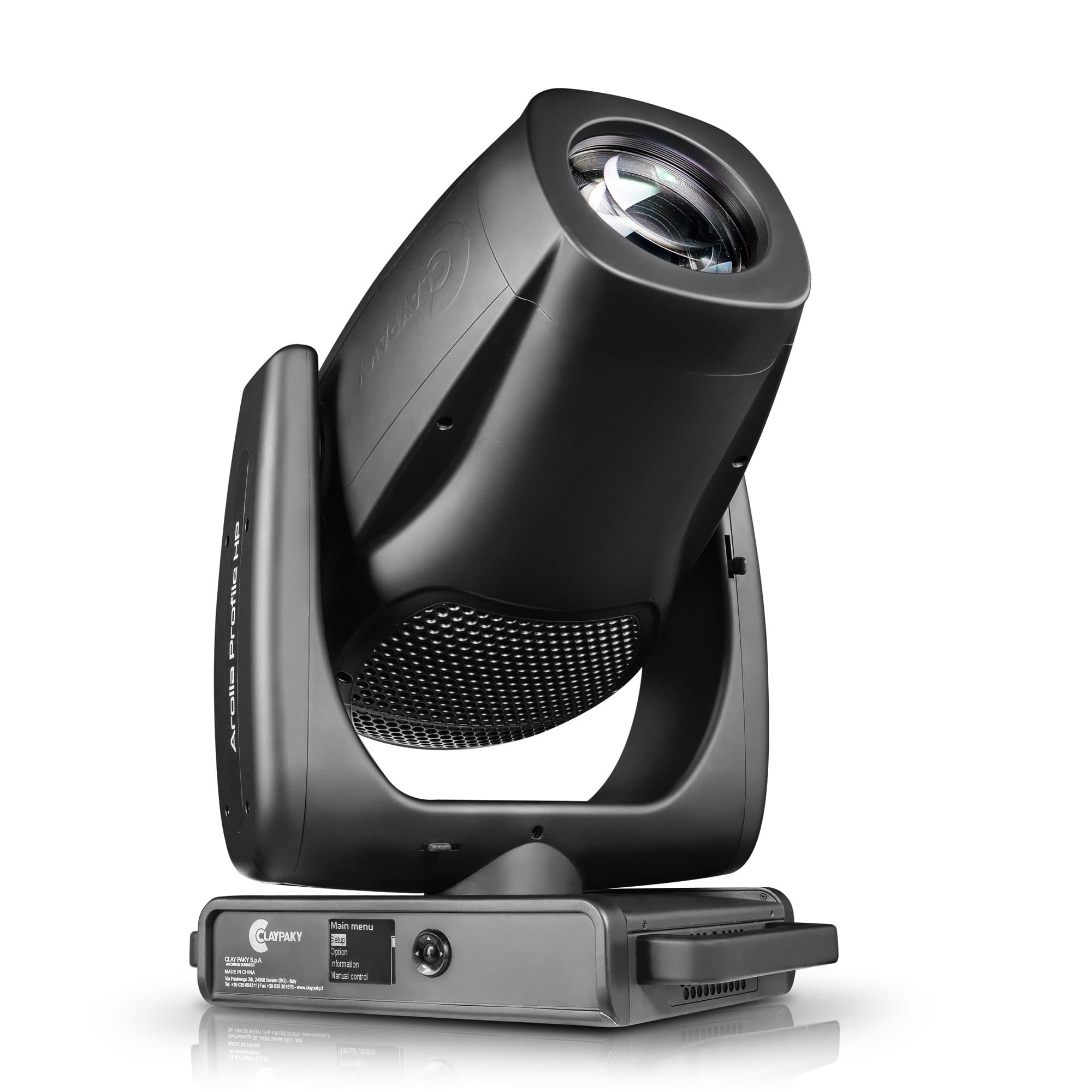

Arolla Profile HP
High-output LED profile moving head — 52,000 lm from a 1,200 W 6,000 K engine.
Applications
ConcertLarge venuesLive eventsTheatreTouringTV / Broadcast
Features
- 52,000 lm output from a custom 1,200 W white LED engine
- Go-Bright technology: no light loss or colour shift through gobos
- Native 6,000 K source with a selectable CRI 88+ enhancement filter
- 5.8°–50.5° motorised zoom with linear CMY mixing and a 6-colour wheel
- Four-blade framing system with ±60° rotation and full blackout per blade
- Interchangeable HD gobos across the fixed and rotating wheels
- One of the most compact profile heads at its wattage
Specifications
Light source
1,200 W white LED
Light output
52,000 lm (integrating sphere)
Colour temperature
6,000 K
CRI
70+ native; 88+ with selectable filter
Zoom
5.8°–50.5° linear
Front lens
Ø 160 mm
Colour
Linear CMY + CTO, 6-colour wheel with CRI filter
Gobos
6 HD rotating + 7 HD fixed (interchangeable)
Prism
4-facet rotating, bidirectional
Framing
4 blades, ±60° rotation, full blackout, macros
Iris
16-blade motorised
Frost
Light 1° + heavy 5°
Movement
Pan 540° / tilt 270° (16-bit)
Control
DMX · Art-Net · sACN · RDM
Power
PowerCon True1 — 1,650 VA max
Ingress protection
IP20
Weight
44.7 kg
