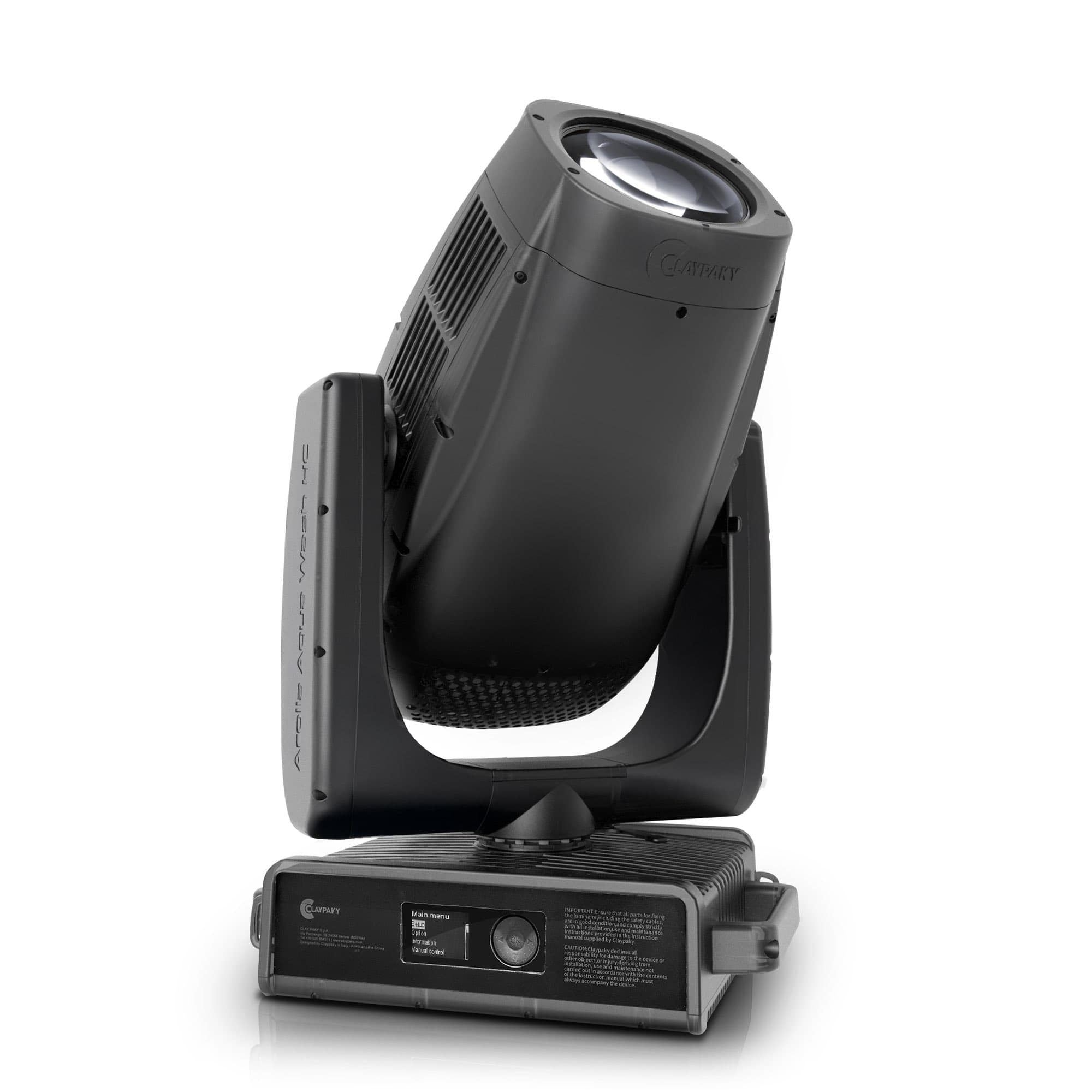

Arolla Aqua Wash HC

High-CRI IP66 LED wash — 28,000 lm at CRI 95 from a custom 960 W TrueCurve engine.

Applications

Custom 960 W white LED engine with TrueCurve technology for accurate, even colour
High CRI 95 output for flawless whites in broadcast and film
6°–47° linear zoom through a 170 mm single front lens
16-bit CMY mixing plus linear CTO and a 6-colour dichroic wheel
Internal two-plane barndoor system for shaping the wash
24-bit digital dimmer with four user-selectable curves
IP66 Shield Family build, CloudIO compatible

Light source

Custom 960 W white LED + TrueCurve

Colour temperature

6,000 K

CRI

Light output

28,000 lm

Zoom

6°–47° linear

Front lens

Ø 170 mm

Colour

16-bit CMY + linear CTO, 6-colour dichroic wheel

Framing

Internal 2-plane barndoor system

Frost

Replaceable heavy frost (60°)

Dimmer

24-bit digital, 4 curves

Movement

Pan 540° / tilt 270° (16-bit)

Control

DMX · Art-Net · sACN · CRMX

Connections

5-pin XLR IN/OUT + RJ45 IN/OUT

Power

PowerCon True1 — 1,580 W max

Ingress protection

IP66 (Shield Family)

Weight

37.5 kg
