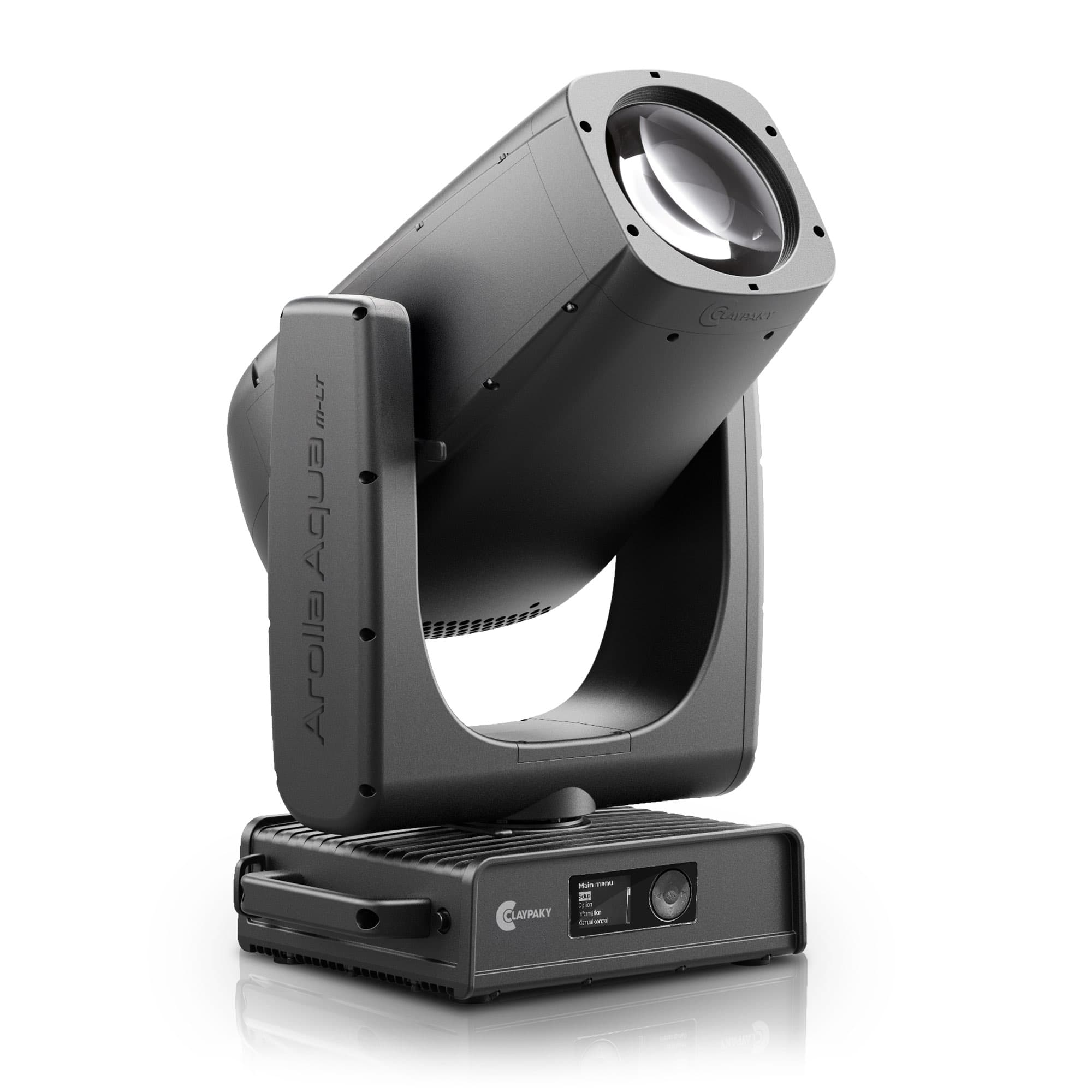

Long-throw IP66 LED profile moving head — 31,000 lm and a 3.5°–53.5° zoom from a 550 W engine.
Applications
Features
- Long-throw optics — a 3.5°–53.5° zoom behind a large 160 mm front lens for tight, punchy projection at arena distances
- Custom 550 W calibrated white LED engine at 6,500 K, delivering up to 31,000 lumens

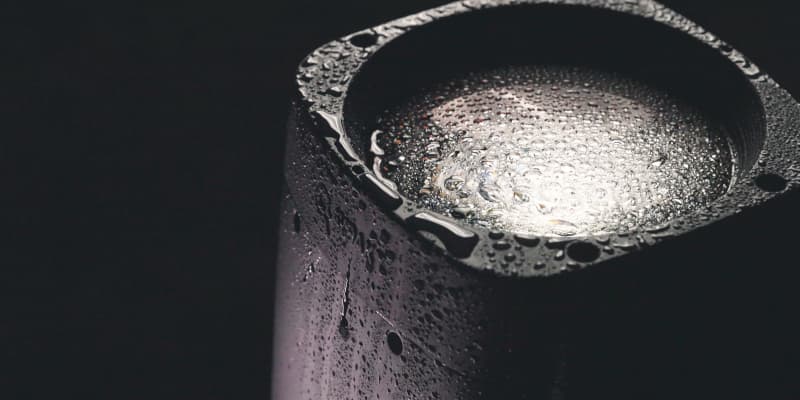

- IP66-rated as part of Clay Paky’s Shield Family — dust-tight and water-jet resistant in a 31.2 kg road-ready body
- Full linear CMY + CTO colour mixing (CTO 3,000–6,500 K) and a six-colour wheel with a tint channel, including a high-CRI filter to CRI 88
- A deep effects toolkit: dual gobo wheels (9 static + 7 rotating glass), an animation disc, two rotating four-facet prisms (conical + linear) and a motorised iris
- Four-blade framing system with ±60° rotation of the whole module and a “total curtain” full-blackout effect
- Endless pan and tilt with absolute-position tracking, a whisper-quiet 35.2 dB Theatre mode and 24-bit high-resolution dimming
Specifications
Light source
550 W custom white LED
Colour temperature
6,500 K ± 300 K
CRI
Up to 70 (88 with selectable filter)
LED life
Up to 40,000 hrs (L70)
Light output
31,000 lm (integrating sphere)
Zoom
3.5°–53.5° linear
Front lens
Ø 160 mm
Colour mixing
Linear CMY + CTO (3,000–6,500 K)
Colour wheel
6 dichroic colours + tint channel
Gobos
9 static + 7 rotating glass (interchangeable)
Animation disc
Aluminium, bidirectional
Prisms
4-facet conical + 4-facet linear (rotating)
Framing
4 blades (±35°), ±60° full-system rotation
Iris
Motorised, 3–100%, with pulse/random effects
Frost
Heavy + soft (2 filters)
Movement
Endless pan & tilt (absolute position)
Control
DMX · Art-Net · sACN · RDM · CRMX
DMX channels
Basic 44 / Standard 54
Connections
5-pin XLR IN/OUT + RJ45 IN/OUT
Power
PowerCon True1 IN/OUT — 1,000 W max
Ingress protection
IP66
Noise
35.2 dB (Theatre) / 39.0 dB (Auto)
Weight
31.2 kg (68.8 lbs)
Gobo outer diameter
19.9mm
Gobo diameter of effective pattern
14mm
