Arolla Aqua LT

Long-throw IP66 LED profile / follow-spot moving head — 44,000 lm and a 6°–47° zoom from a 900 W engine.

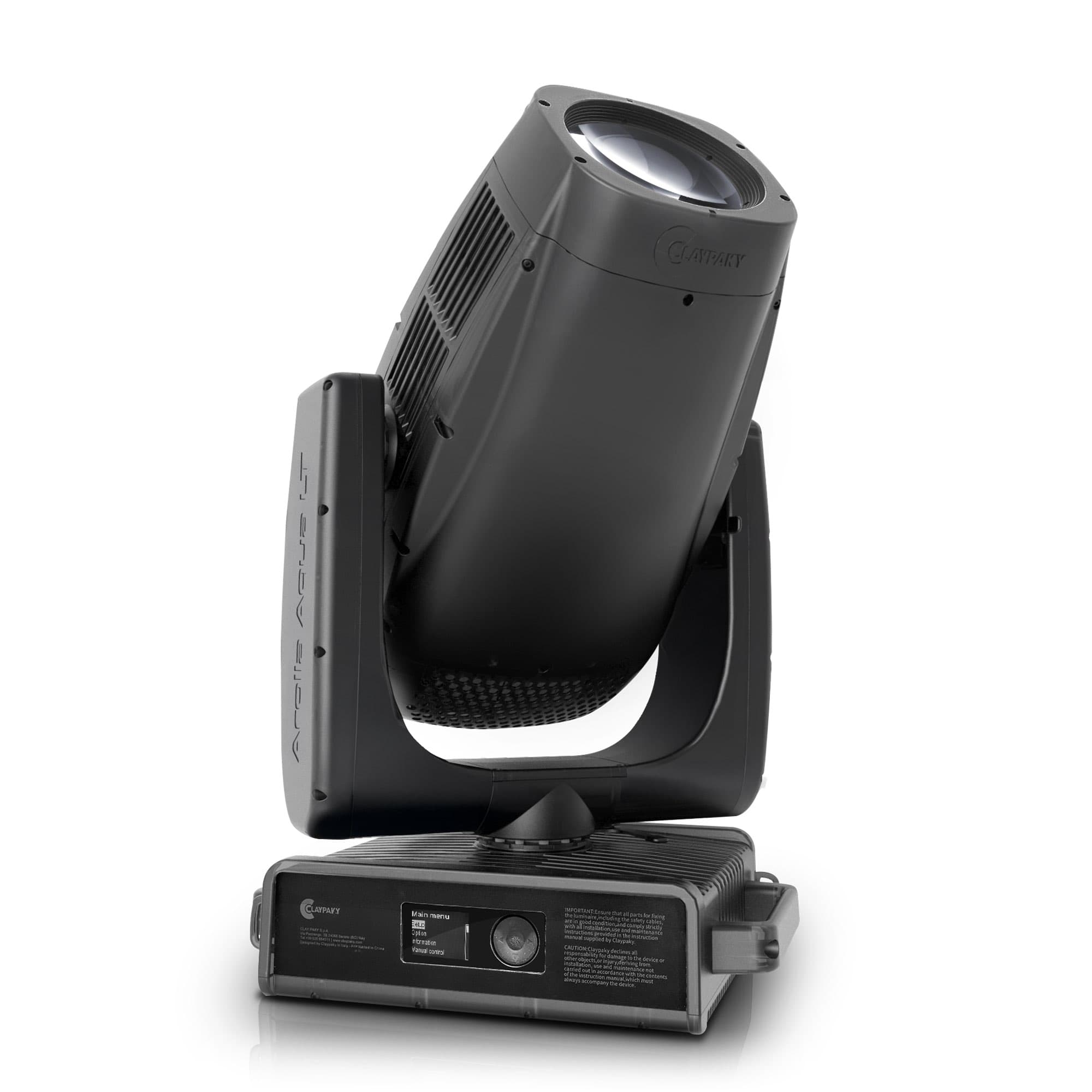

Claypaky Arolla Aqua LT IP66 long-throw profile moving head — three-quarter studio view
Claypaky Arolla Aqua LT — effects section highlight
Claypaky Arolla Aqua LT — four-blade framing system highlight
Claypaky Arolla Aqua LT — long-throw zoom range highlight
Claypaky Shield Family IP66 badge — the Arolla Aqua LT’s weatherproof rating

Applications

ConcertFestivalsLarge venuesOutdoor / InstallTouringTV / Broadcast

Features

  • 900 W white LED engine for high-output, long-throw spot projection
  • IP66 Shield Family build with an optional Marine Shield rating for marine use
  • Long-throw 6°–47° linear zoom with pinpoint narrow-beam precision
  • Selectable filter lifts colour rendering from CRI 70 to CRI 88+
  • Framing system with four focal planes and ±60° rotation for precise shaping
  • Full effects suite: CMY, colour wheel, rotating and static gobos, animation disc, prism, iris, frost
  • LT/FS version adds an onboard digital camera for remote follow-spot operation

Specifications

Light source

900 W white LED

Colour temperature

7,000 K

CRI

70+ (88+ with selectable filter)

LED life

Up to 40,000 hrs (L70)

Light output

44,000 lm

Zoom

6°–47° linear

Front lens

Ø 170 mm

Colour

Linear CMY + CTO, 6-colour dichroic wheel

Gobos

8 static + 7 HD rotating (indexable)

Effects

Animation disc, four-faced rotating prism, motorised iris, frost

Framing

4 blades, 4 focal planes, ±60° rotation

Movement

Pan 540° / tilt 270° (16-bit), absolute position

Control

DMX · Art-Net · sACN · CRMX

Connections

5-pin XLR IN/OUT + RJ45 IN/OUT

Power

PowerCon True1 — 1,400 W max

Ingress protection

IP66 (Shield Family)
