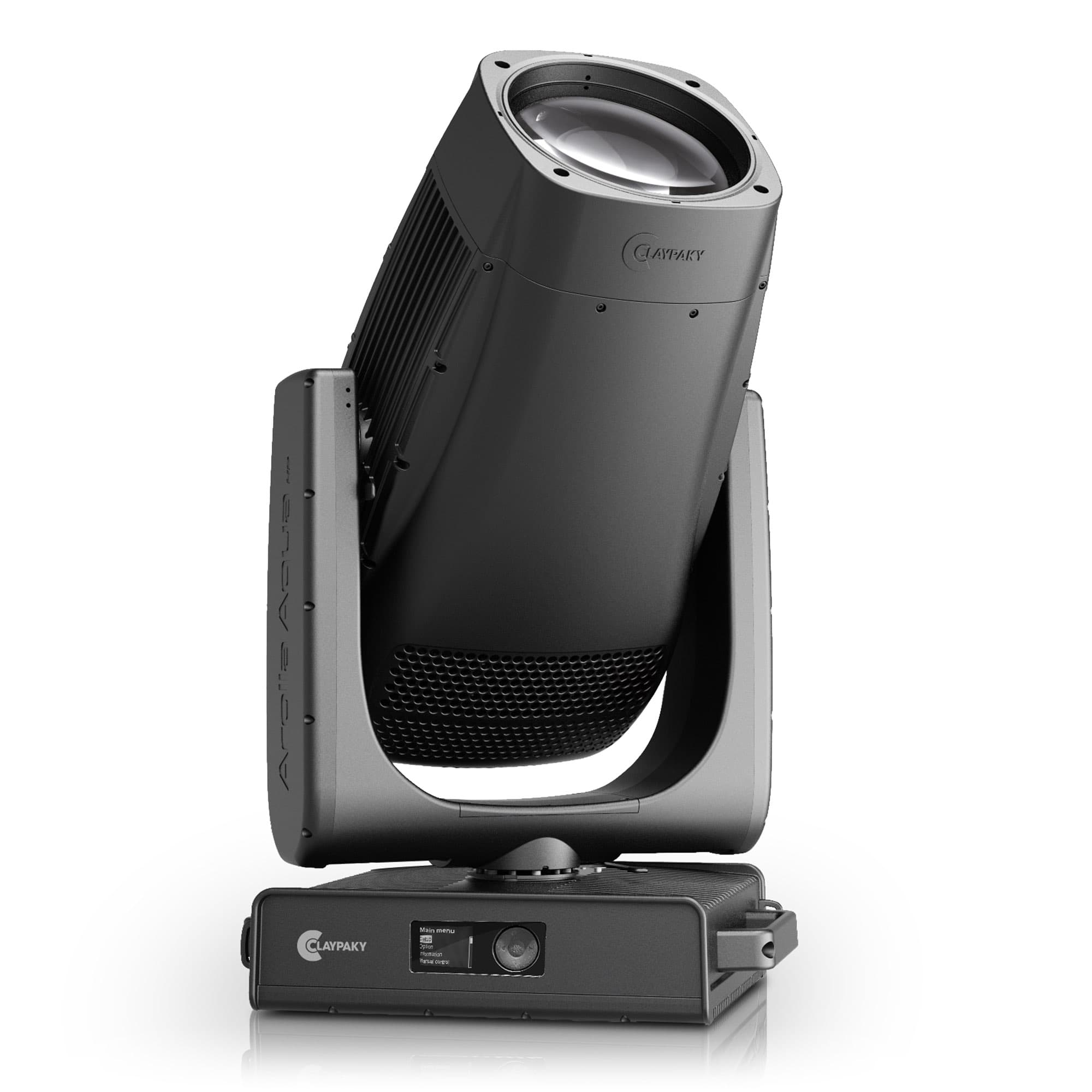

Arolla Aqua HP

The brightest of the Aqua family — a 1,400 W IP66 LED profile moving head pushing 60,000 lm.

Applications

ConcertFestivalsLarge venuesOutdoor / InstallTouringTV / Broadcast

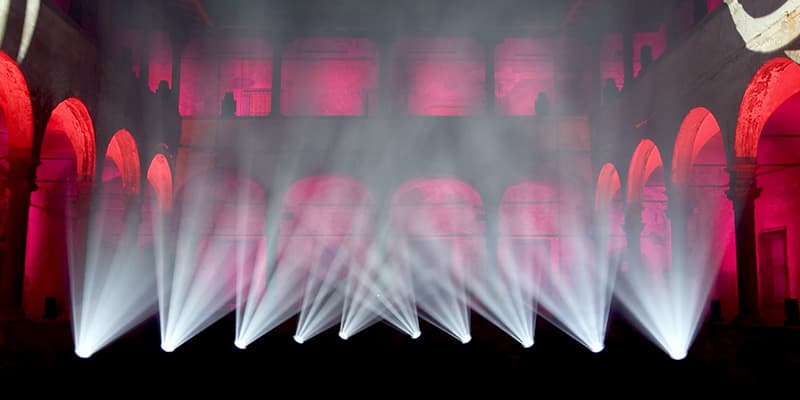

1,400 W cold-white LED engine — among the brightest IP66 fixtures in its category
Dual zoom: a 3.6°–55° standard band plus a dedicated long-throw band for extreme distance
Twin colour wheels and twin rotating HD gobo wheels for deep creative range

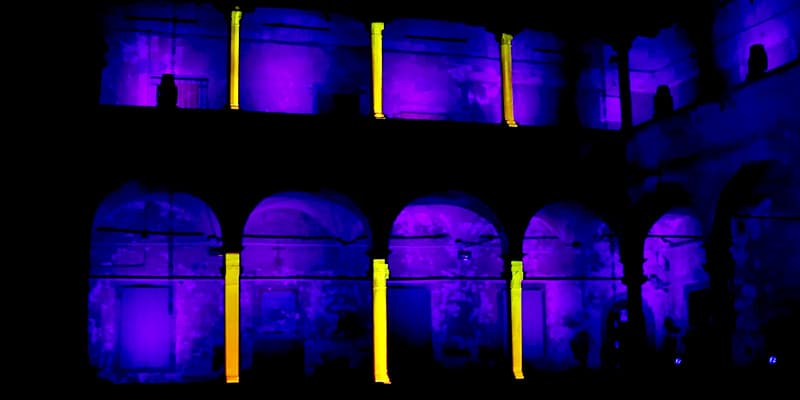

Four-plane framing system with ±60° rotation plus a 16-blade motorised iris
Two rotating prisms and an animation wheel for aerial and beam effects
SunSafe protection and a “Total Curtain” instant blackout

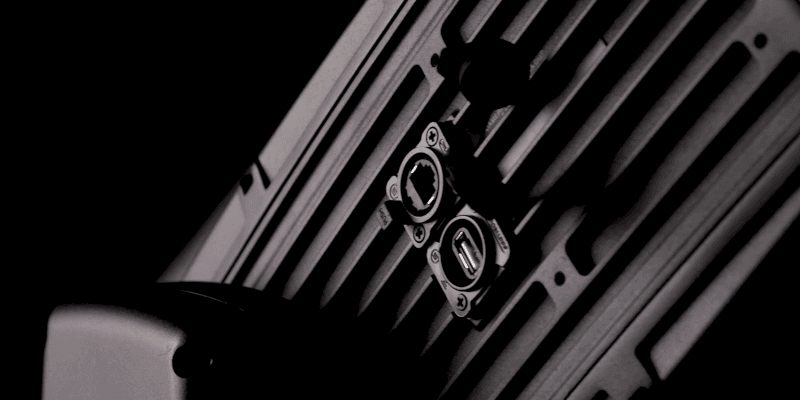

FS follow-spot version with onboard camera connectivity

Light source

1,400 W cold-white LED

Colour temperature

6,500 K

CRI

Up to 70 (88+ with selectable filter)

Light output

60,000 lm

Zoom

3.6°–55° linear (standard); long-throw band

Front lens

Ø 220 mm

Colour

Linear CMY + CTO, two 5-colour dichroic wheels

Gobos

2 rotating wheels, 6 HD gobos each (Go Bright)

Effects

Two 4-facet rotating prisms, animation wheel, frost

Iris

16-blade motorised

Framing

4 blades, 4 focal planes, ±60° rotation, Total Curtain

Movement

Pan 540° / tilt 270°, SunSafe, auto positioning

Control

DMX · Art-Net · sACN · RDM · CRMX

Connections

5-pin XLR IN/THRU + RJ45 IN/OUT

Power

PowerCon True1 — 1,900 W max

Ingress protection

IP66 (Shield Family)

Weight

56.9 kg
