Arolla Aqua

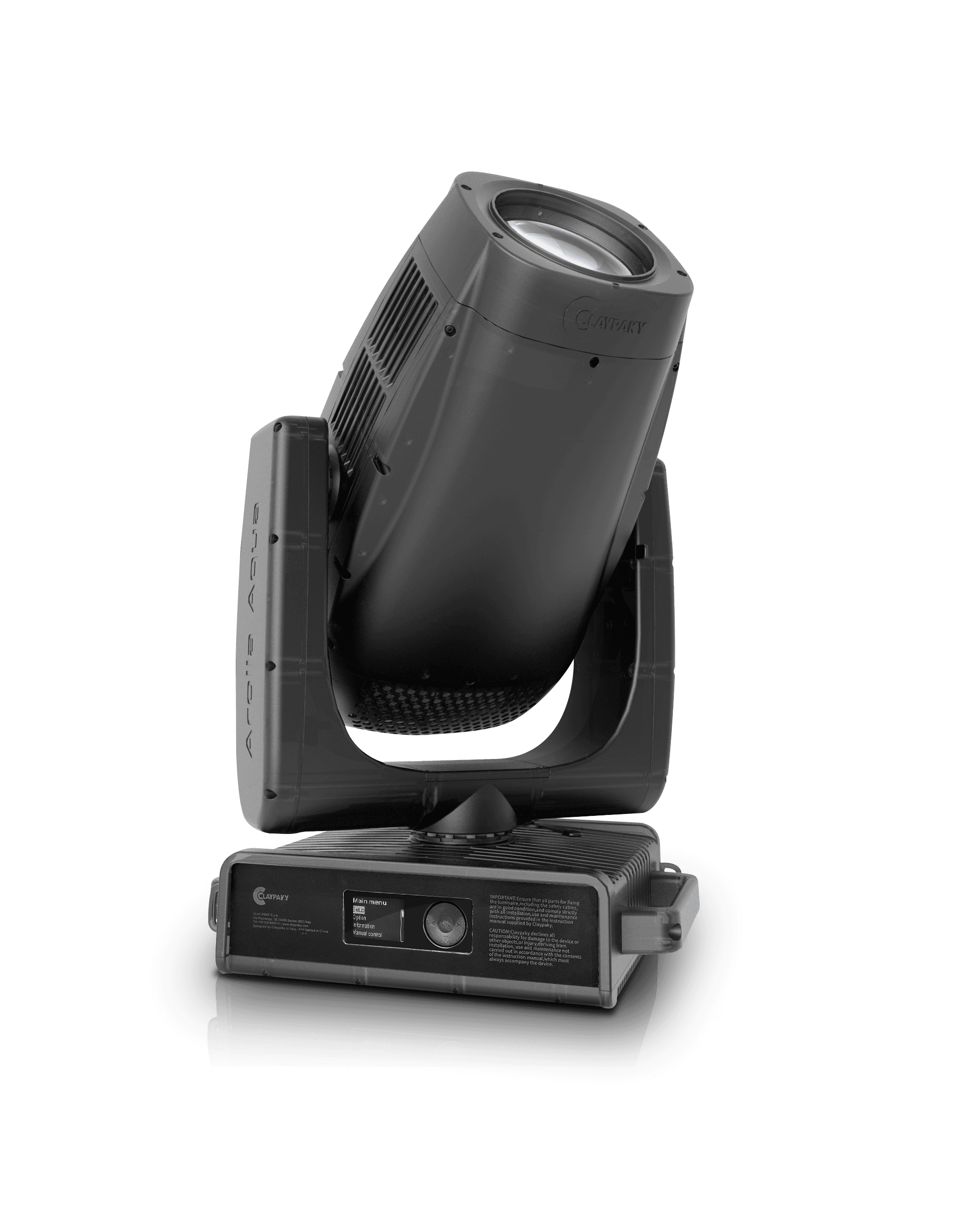

Powerful, compact IP66 LED profile moving head — 40,360 lm and a 5.5°–50° zoom from a 900 W engine.
Applications
Features
- Big output from a compact body — 40,360 lumens and a 5.5°–50° (9:1) linear zoom from a 900 W white LED engine

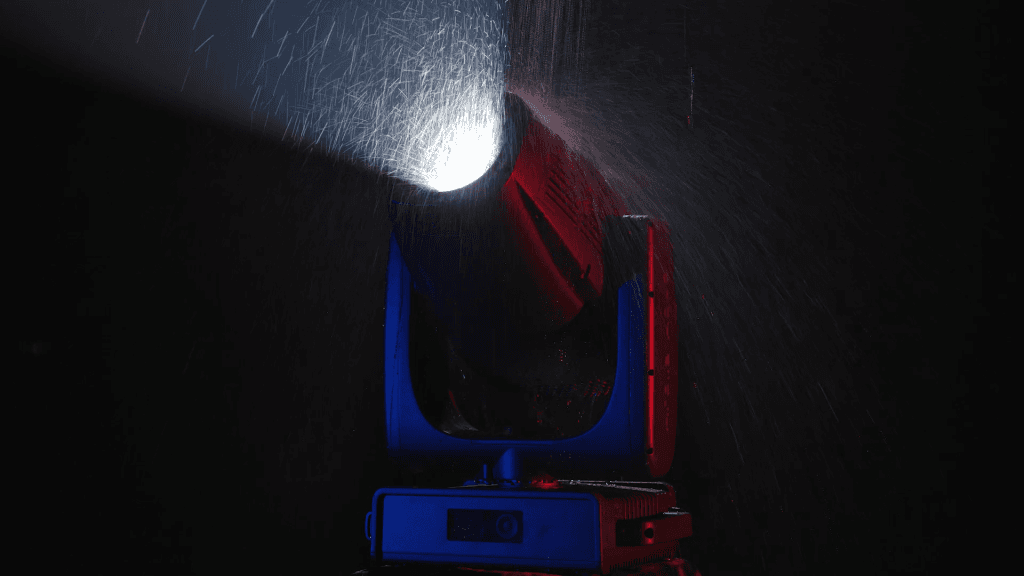

- IP66-rated as part of Clay Paky’s Shield Family, with an optional Marine Shield treatment for salt-air and open-sea use
- Go-Bright technology keeps the beam consistently bright with no light loss as effects engage
- Full CMY + CTO colour mixing and a six-position dichroic colour wheel, including a high-CRI filter that lifts CRI past 88
- Four-blade framing system with ±60° rotation of the whole module and a “total curtain” full-blackout effect

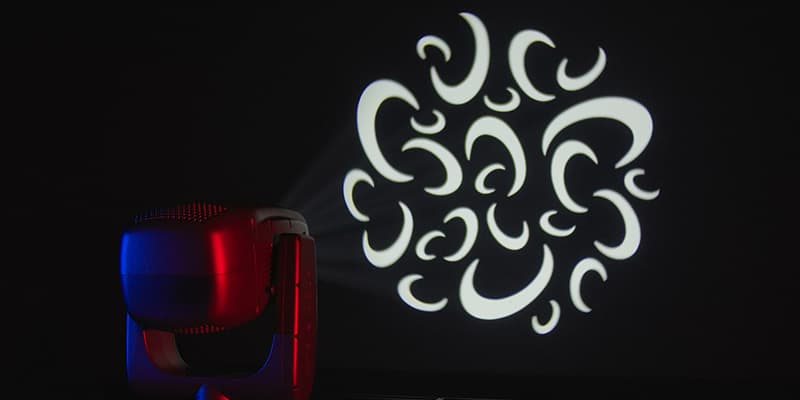

- A complete effects toolkit: two gobo wheels (8 static + 7 rotating HD indexable), an animation wheel, a four-faced rotating prism and a motorised iris
- Whisper-quiet Theatre mode at 40.0 dBA, with selectable noise presets and 24-bit high-resolution dimming across five curves
- new feature
Specifications
Light source
900 W White LED
Colour temperature
7,000 K
CRI
70+ (88+ with selectable filter)
LED life
Up to 40,000 hrs (L70)
Light output
40,360 lm (integrating sphere)
Zoom
5.5°–50° (9:1) linear
Front lens
Ø 140 mm
Colour mixing
Linear CMY + CTO
Colour wheel
6 dichroic colours (incl. high-CRI filter)
Gobos
8 static + 7 rotating (HD, indexable)
Animation wheel
Aluminium, bidirectional
Prism
4-facet (rotating)
Framing
4 blades, ±60° full-system rotation
Iris
Motorised, with pulse and random effects
Frost
Light 1° + heavy 5°
Movement
Pan 540° / tilt 270° (16-bit)
Control
DMX · Art-Net · sACN · RDM · CRMX
Connections
5-pin XLR IN/OUT + RJ45 IN
Power
PowerCon True1 IN/OUT — 1,100 W max
Ingress protection
IP66
Noise
40.0 dBA (Theatre) / 50.3 dBA (Auto)
Weight
38.7 kg (85.3 lbs)
