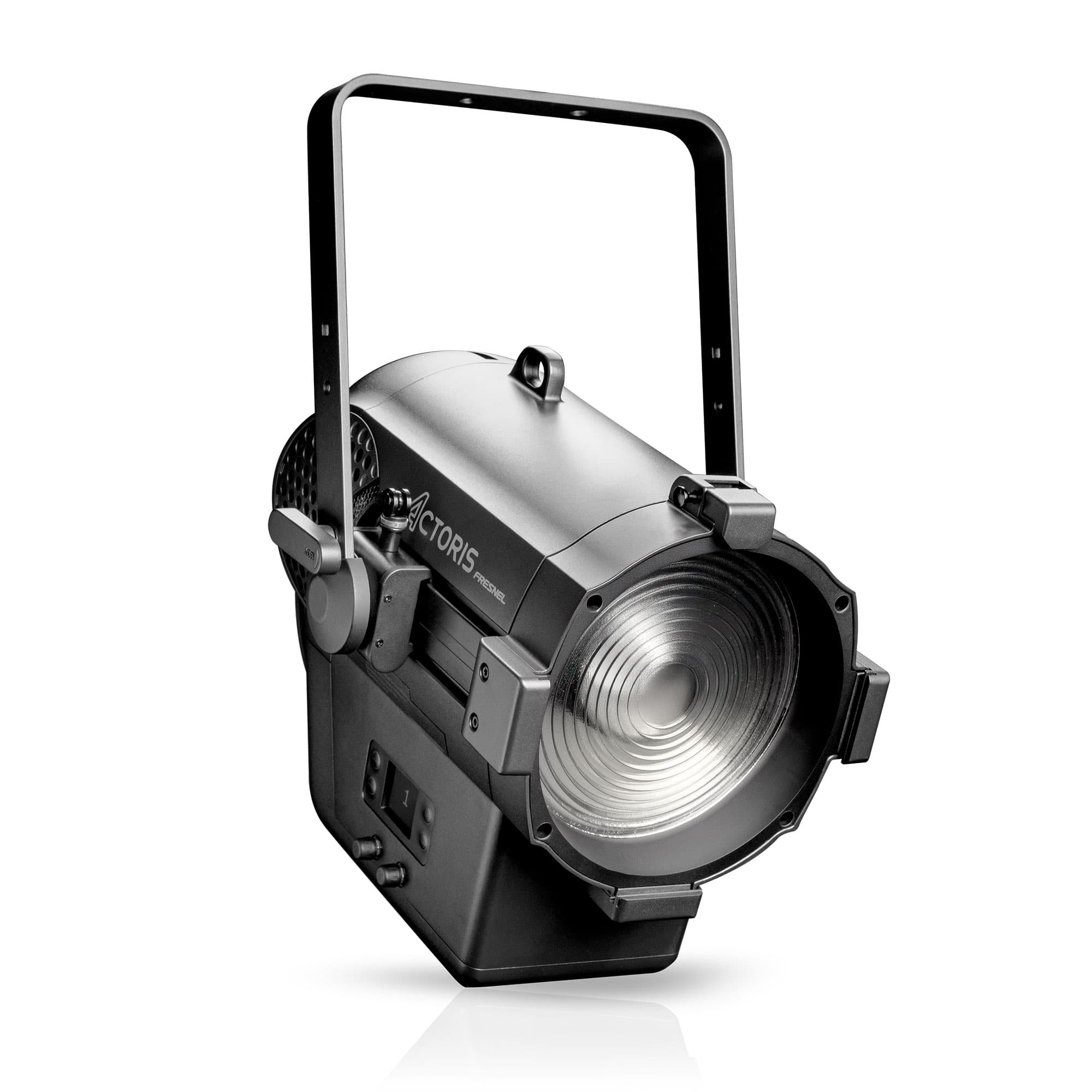

Actoris Fresnel
Six-colour LED Fresnel — velvet-smooth washes, CRI up to 97 and a 10°–60° zoom.
Applications
Live eventsStage designTheatreTV / Broadcast
Features

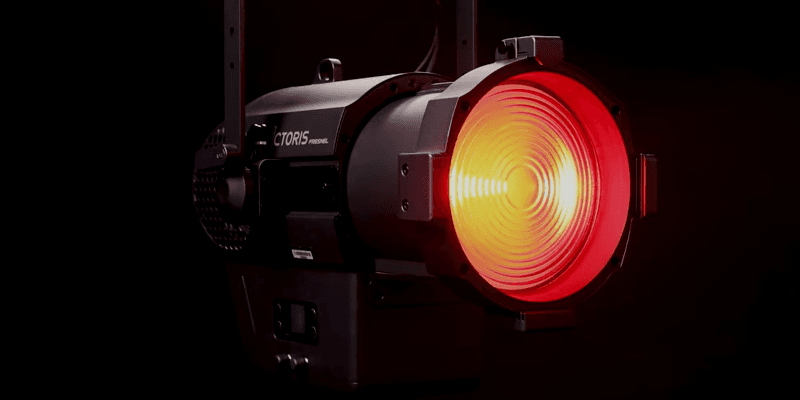

- Six-colour RGBAL plus Royal Blue LED engine for a wide, accurate colour gamut

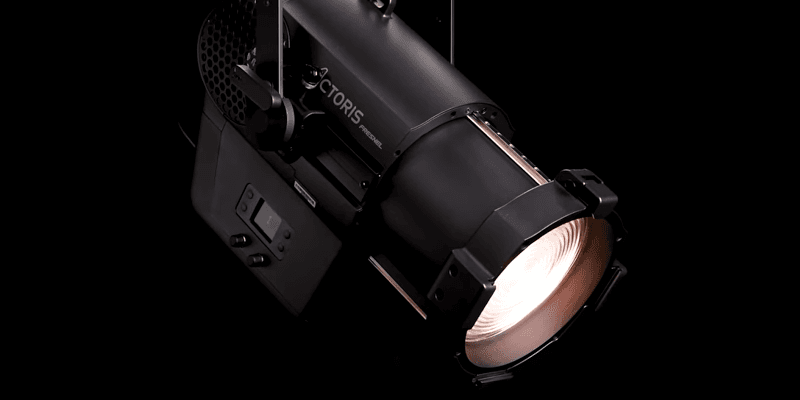

- Dynamic white from 2,500 K to 10,000 K with green/magenta tint correction
- Premium Fresnel lens with a linear motorised 10°–60° zoom for a smooth, diffused wash
- Tungsten mode emulating a tungsten lamp through dimming, with CCT adjustment
- 24-bit ultra-smooth dimming with selectable curves and no flicker
- CloudIO-ready on-field colour calibration for fixture-to-fixture consistency
- Lightweight magnesium housing with a sliding stirrup for balance
Specifications
Light source
6-colour RGBAL + Royal Blue LED
Light output
17,700 lm
CRI
Up to 97
Colour temperature
Dynamic white 2,500–10,000 K
Zoom
10°–60° linear motorised
Front lens
Ø 200 mm
Effects
Tungsten mode; ±green/magenta tint correction
Dimmer
24-bit, 5 selectable curves
Personalities
4 modes + stand-alone
Control
DMX · Art-Net · sACN · RDM · WebServer
Connections
5-pin XLR IN/THRU + RJ45 IN/OUT
Power
PowerCon True1 — 570 W max
Noise
23.9 dB (fanless) to 35.0 dB
Ingress protection
IP20
Weight
11 kg
